5745131-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | Configuration Features: PCB Mount Orientation Right Angle | Number of Positions 9 | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Gold Flash | Contact Shape & Form Round | PCB Contact Termination Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Current Rating (Max) 6 AMP | Contact Underplating Material Nickel | Dimensions: PCB Thickness (Recommended) .093 INCH | Row-to-Row Spacing

Download 5745131-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

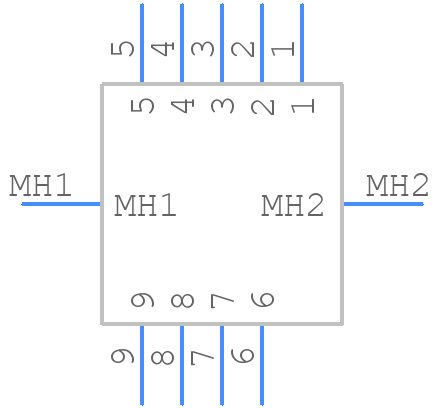

Symbol
5745131-1 - TE Connectivity - PCB symbol
click to zoom

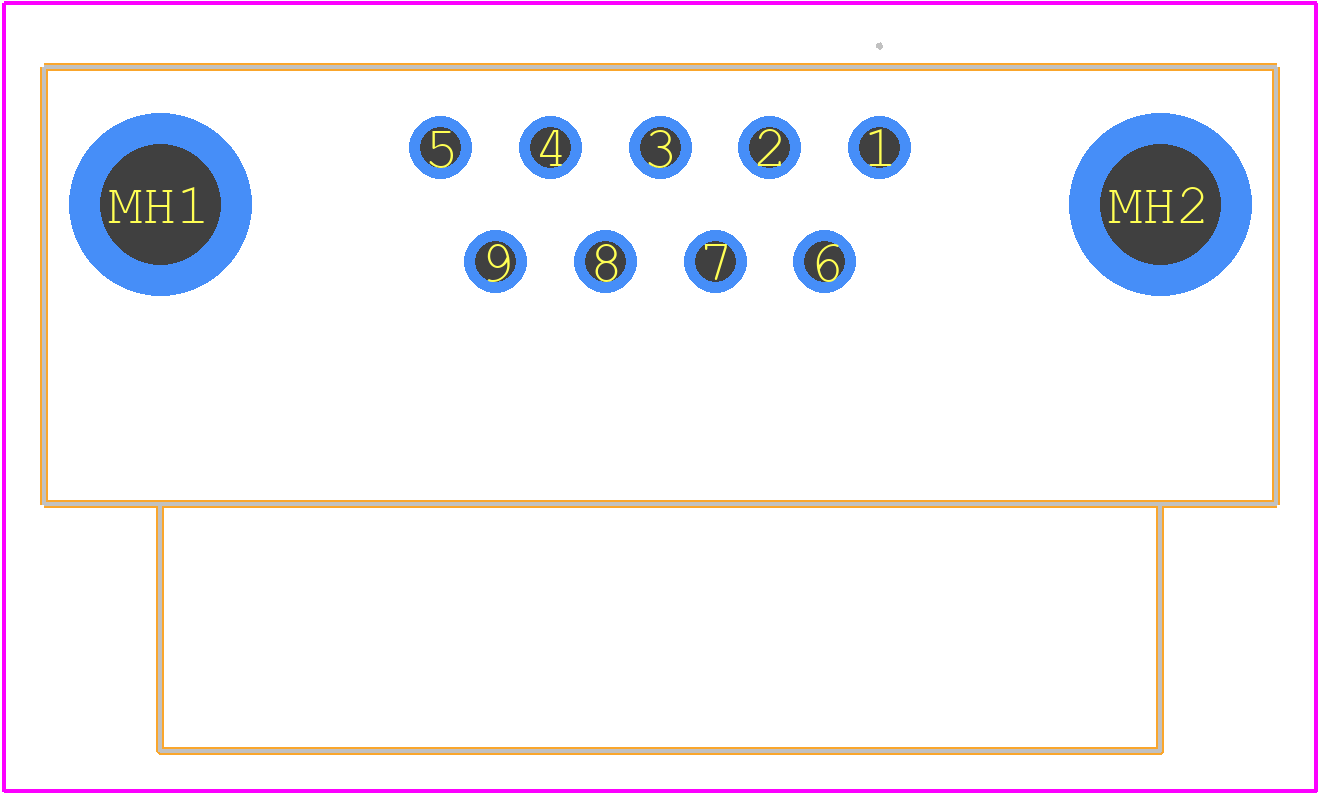

PCB Footprints
5745131-1 - TE Connectivity PCB footprint - Other - Other - 5745131-1-3
click to zoom
3D Models
5745131-1 - TE Connectivity - 3D model - Other - 5745131-1-3
click to zoom

5745131-1 Details

  • Manufacturer Part Number:

    5745131-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Size:

    1/E

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

5745131-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5745131-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5745131-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5745131-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The recommended wire size for the 5745131-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for more information.
