The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
Yes, the 5745351-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
The operating temperature range for the 5745351-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
Yes, the 5745351-2 connector is designed to operate in harsh environments. It has a sealed construction that protects the contacts from moisture, dust, and other contaminants. Additionally, the connector's materials are resistant to corrosion and can withstand exposure to various chemicals.
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 5745351-2 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire can withstand the electrical and mechanical stresses of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5745351-2 Overview

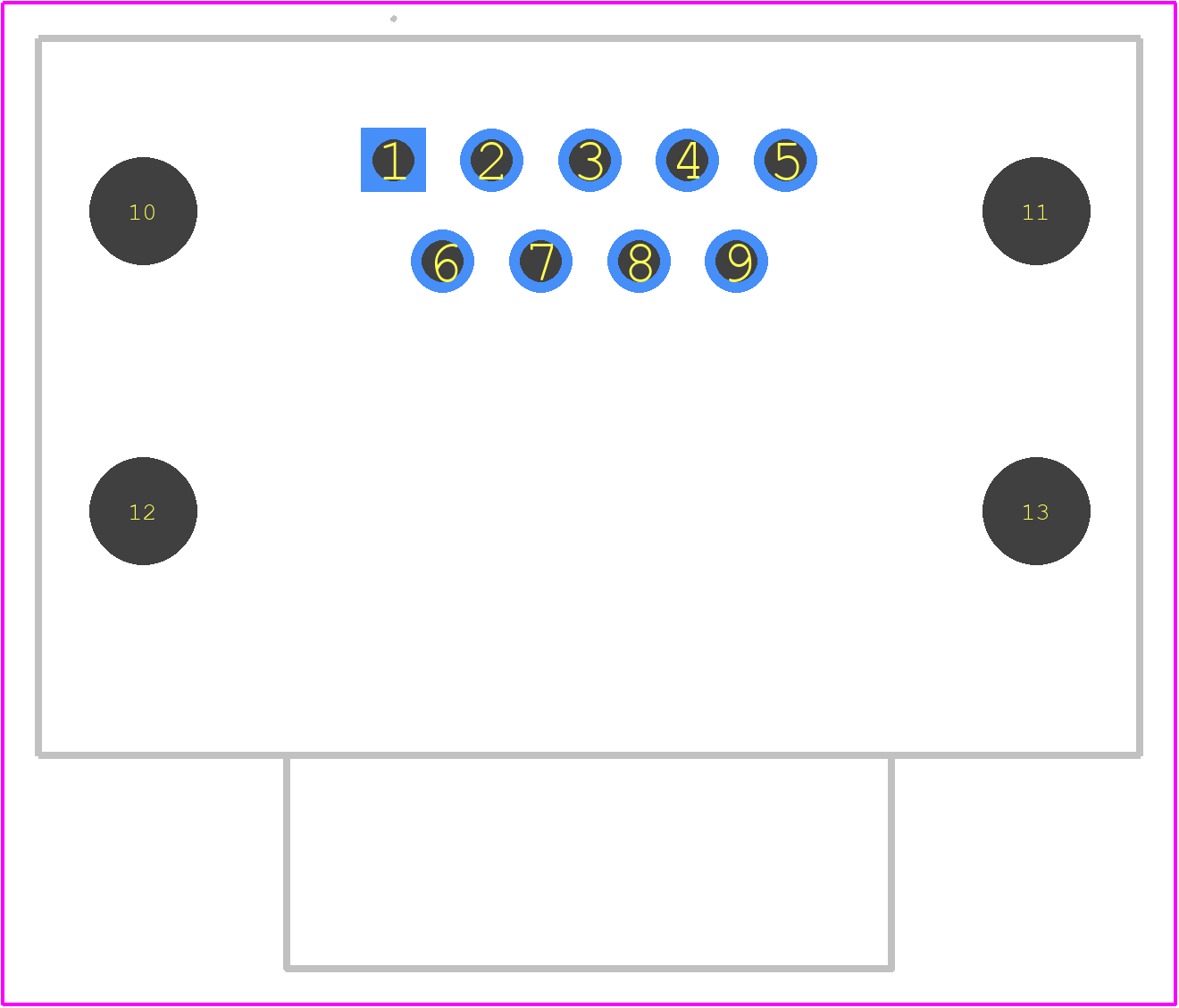

Use the download button to access the 5745351-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57453,
or try a keyword search, such as D Type Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
