5745395-2 - TE Connectivity

Description: Body Features: Mating Feature Plating Material Clear Chromate | Mating Feature Material Zinc | Connector Profile Standard | Primary Product Color Black | Configuration Features: PCB Mount Orientation Right Angle | Number of Rows 2 | Number of Positions 9 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Gold | Contact Shape & Form Round | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Curren

Download 5745395-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

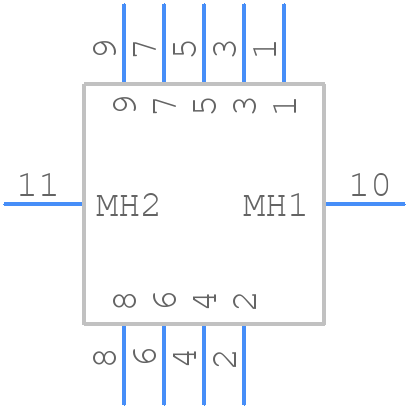

5745395-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

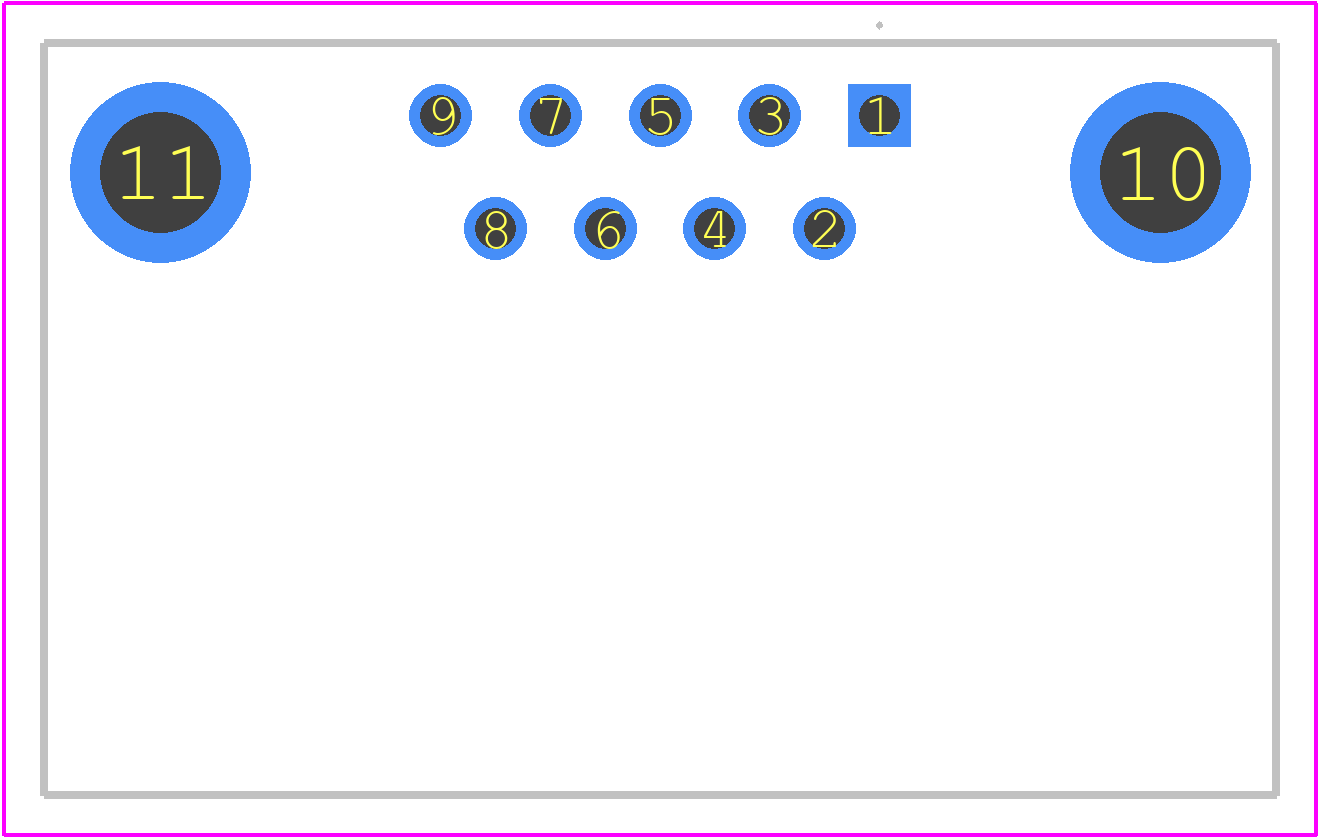

5745395-2 - TE Connectivity PCB footprint - Other - Other - 5745395-2-1
click to zoom
3D Models
5745395-2 - TE Connectivity - 3D model - Other - 5745395-2-1
click to zoom

5745395-2 Details

  • Manufacturer Part Number:

    5745395-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYAMIDE/POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    SCREWLOCKS

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Size:

    1/E

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

5745395-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 5745395-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5745395-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within the recommended temperature range.
  • The 5745395-2 connector has a sealed construction, making it suitable for outdoor or harsh environments. However, it's essential to ensure the connector is properly sealed and protected from moisture and contaminants to maintain its performance and reliability.
  • The 5745395-2 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with different wire gauges or types.
