5745414-1 - TE Connectivity

Description: Body Features: Connector Profile Standard | Insert Material Thermoplastic | Primary Product Color Black | Shell Plating Material Tin | Configuration Features: Number of Positions 50 | PCB Mount Orientation Vertical | Number of Rows 2 | Contact Features: Contact Base Material Brass | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Underplating Material Nickel | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 6 AMP | Contact Shape & Form Square | Contact Mati

Download 5745414-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5745414-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

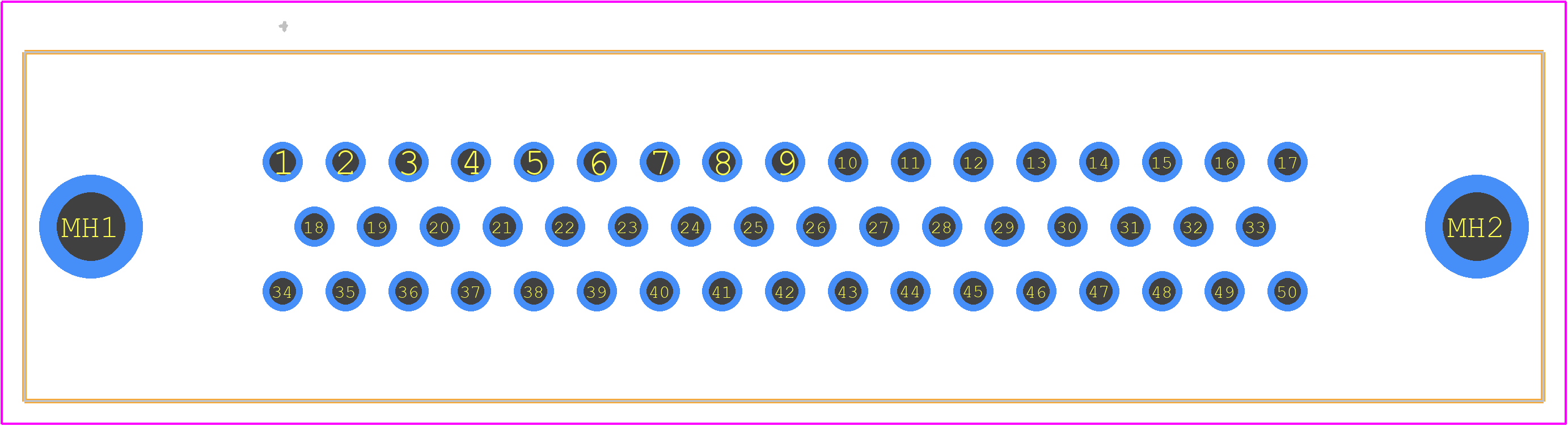

5745414-1 - TE Connectivity PCB footprint - Other - Other - 5745414-1-1
click to zoom
3D Models
5745414-1 - TE Connectivity - 3D model - Other - 5745414-1-1
click to zoom

5745414-1 Details

  • Manufacturer Part Number:

    5745414-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    CARBON STEEL

  • Shell Size:

    5/D

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

5745414-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5745414-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5745414-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5745414-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The recommended wire size for the 5745414-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for specific guidance on wire selection.
