Part Image

5747190-2 - TE Connectivity

Description: Body Features: Connector Profile High | Primary Product Color Black | Insert Material Thermoplastic | Shell Plating Material Tin | Configuration Features: Number of Rows 2 | Number of Positions 9 | PCB Mount Orientation Vertical | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Mating Area Plating Material Gold Flash over Palladium Nickel | PCB Contact Termination Area Plating Material Tin | Contact Underplating Material Nickel | Contact Current Rating (Max) 6 AMP | Conta

Download 5747190-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

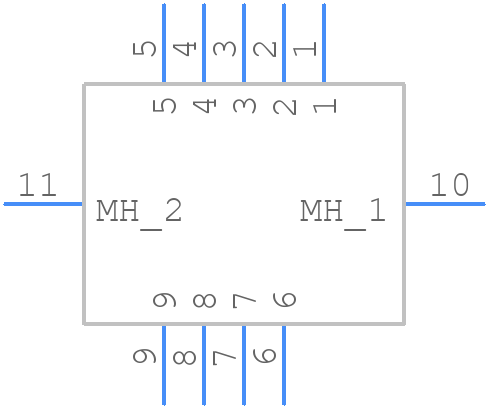

Symbol
5747190-2 - TE Connectivity - PCB symbol
click to zoom

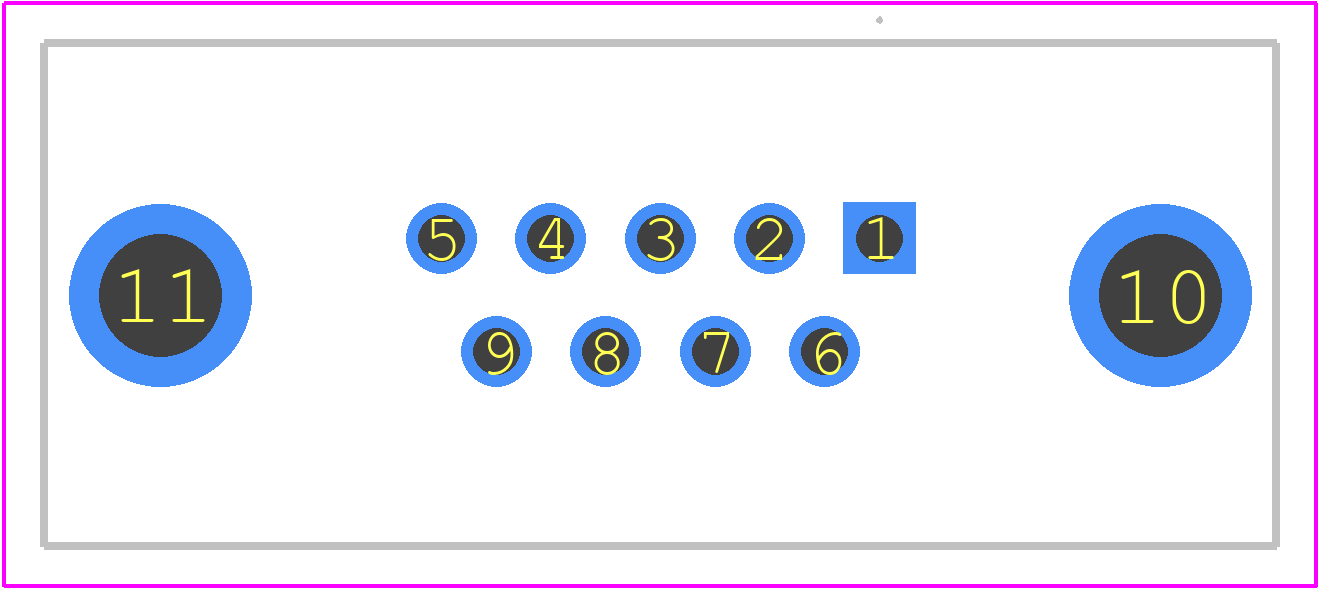

PCB Footprints
5747190-2 - TE Connectivity PCB footprint - Other - Other - 5747190-2-2
click to zoom
3D Models
5747190-2 - TE Connectivity - 3D model - Other - 5747190-2-2
click to zoom

5747190-2 Details

  • Manufacturer Part Number:

    5747190-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

5747190-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 5747190-2 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 5747190-2 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
  • The operating temperature range for the 5747190-2 connector is -40°C to 125°C (-40°F to 257°F).
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to follow the manufacturer's guidelines for wire gauge and size.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5747190-2 Overview

Use the download button to access the 5747190-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57471, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
