5747238-4 - TE Connectivity

Description: Body Features: Primary Product Color Black | Mating Retention Feature Material Zinc | Shell Plating Material Tin over Copper | Connector Profile Standard | Configuration Features: PCB Mount Orientation Right Angle | Number of Rows 2 | Number of Positions 25 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Underplating Material Nickel | Contact Current Rating (Max) 6 AMP | Contact Base Material Brass | Contact Mating Are

Download 5747238-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5747238-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

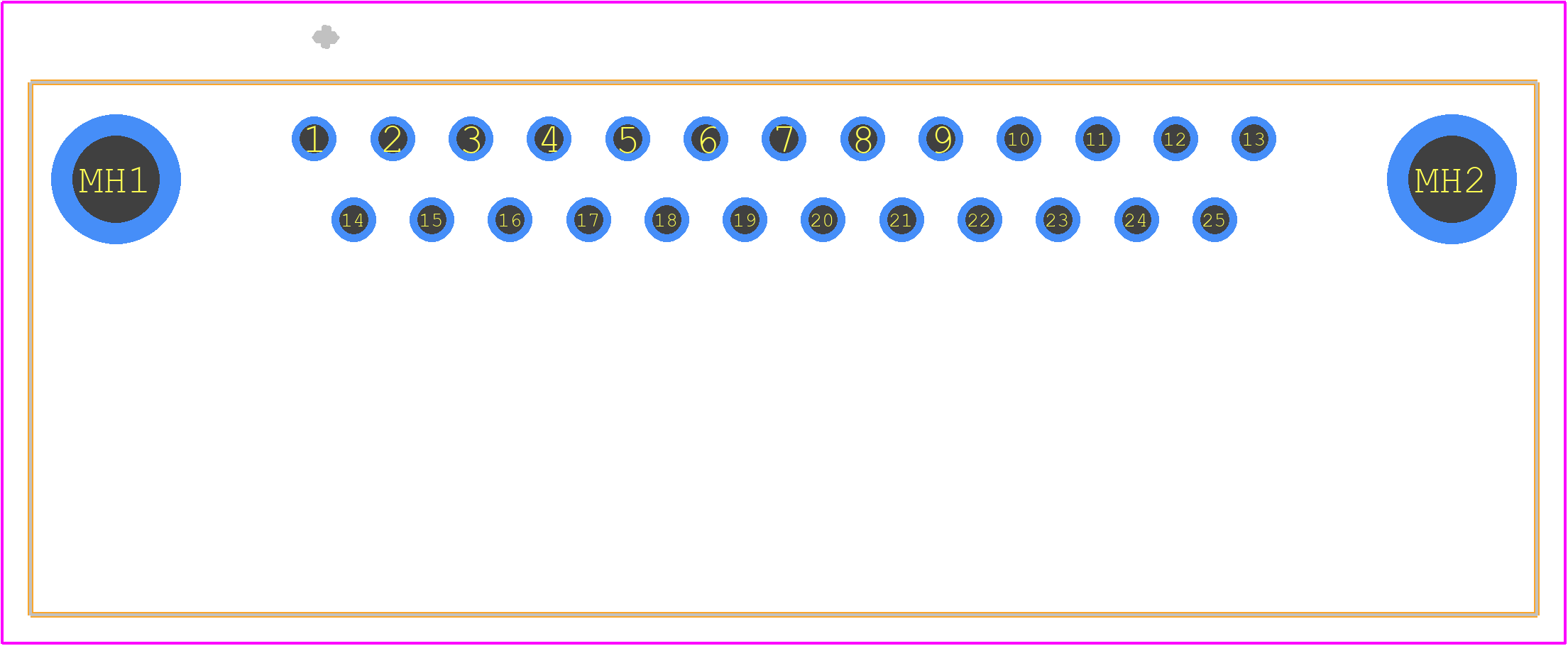

5747238-4 - TE Connectivity PCB footprint - Other - Other - 5747238-4-2
click to zoom
3D Models
5747238-4 - TE Connectivity - 3D model - Other - 5747238-4-2
click to zoom

5747238-4 Details

  • Manufacturer Part Number:

    5747238-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.5

  • Connector Type:

    D SUBMINIATURE CONNECTOR

5747238-4 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 5747238-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 5747238-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high vibration, such as in industrial, automotive, or aerospace environments.
  • The 5747238-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The 5747238-4 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 5747238-4 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. This ensures a comprehensive connectivity solution for various applications.
