Part Image

5747844-4 - TE Connectivity

Description: 9 way r/a PCB D skt w/threaded insert,6A

Download 5747844-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

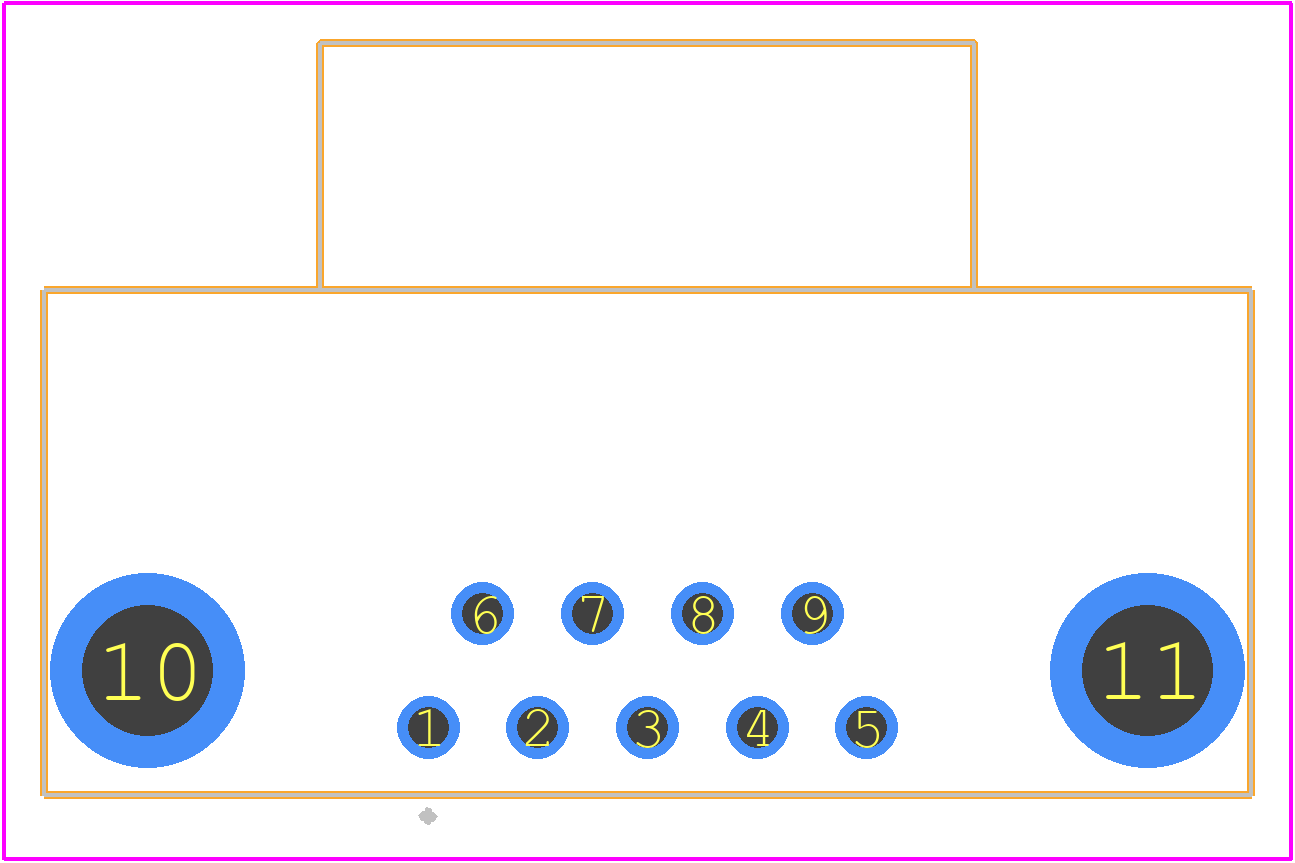

5747844-4 - TE Connectivity PCB footprint - Other - Other - 5747844-4
click to zoom
3D Models
5747844-4 - TE Connectivity  - 3D model - Other - 5747844-4
click to zoom

5747844-4 Details

  • Manufacturer Part Number:

    5747844-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    3 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    0.81

  • YTEOL:

    8.5

  • Additional Feature:

    AMPLIMITE

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.494 inch

  • Body Depth:

    0.497 inch

  • Body Length:

    1.213 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Design:

    PREASSEM CONN

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    6A

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #4/40 UNC

  • Mounting Option 2:

    THREADED INSERT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    ZINC ALLOY

  • Shell Size:

    1/E

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.74 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5747844-4 Overview

Use the download button to access the 5747844-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57478, or try a keyword search, such as D Type Connectors
