Part Image

5787083-7 - TE Connectivity

Description: Body Features: Connector Profile Standard | Shell Plating Finish Bright | Assembly Process Feature Material Copper Alloy | Primary Product Color Black | Shell Plating Material Nickel over Copper | Configuration Features: Number of Rows 4 | Number of Positions 68 | PCB Mount Orientation Right Angle | Contact Features: Contact Base Material Phosphor Bronze | PCB Contact Termination Area Plating Material Tin | Contact Underplating Material Palladium Nickel | PCB Contact Termination Area Plating Material Tin ov

Download 5787083-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5787083-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

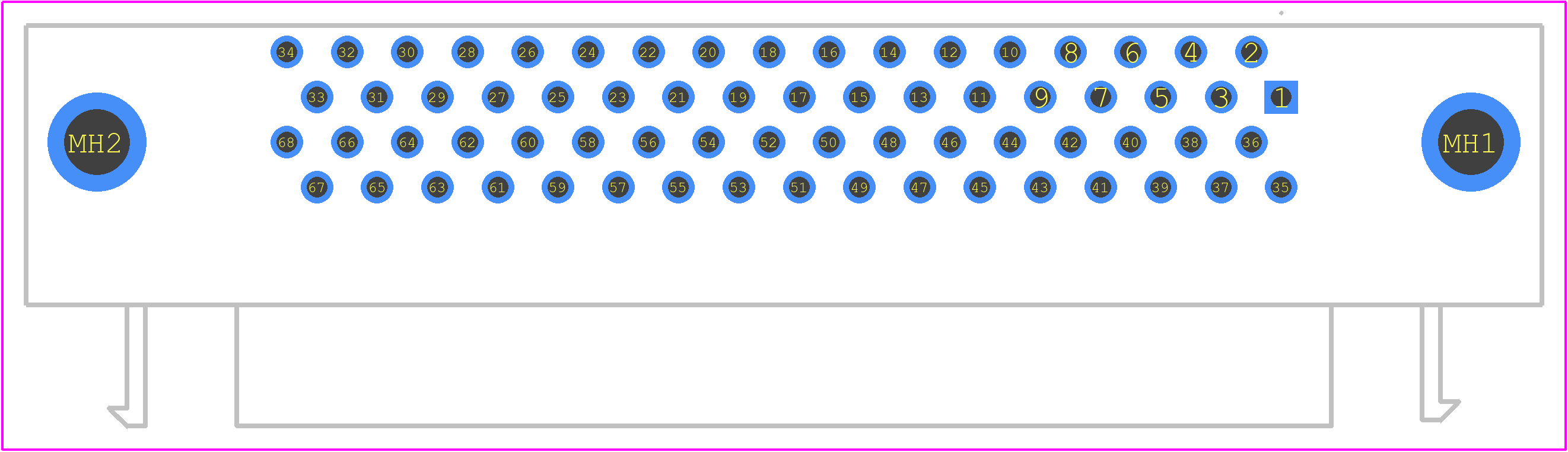

5787083-7 - TE Connectivity PCB footprint - Other - Other - 5787083-7-1
click to zoom
3D Models
5787083-7 - TE Connectivity - 3D model - Other - 5787083-7-1
click to zoom

5787083-7 Details

  • Manufacturer Part Number:

    5787083-7

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.7

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    OTHER D TYPE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    LR, UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    CARBON STEEL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    68

  • UL Flammability Code:

    94V-0

5787083-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5787083-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 5787083-7 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 5787083-7 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in environments with exposure to harsh chemicals or prolonged immersion in water.
  • The 5787083-7 connector has a mating cycle life of 500 cycles. This means it can withstand 500 connect and disconnect cycles without compromising its performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5787083-7 Overview

Use the download button to access the 5787083-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57870, or try a keyword search, such as D Type Connectors
