- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5787851-1
- Part Number 5787851-1
- Manufacturer TE Connectivity
- Pin Count 202
- Part Category Connector
- Package Category Other
- Footprint Name Other - 5787851-1-1
- Released Date Jul 16, 2024
- Last Modified Date Oct 3, 2024 10:45 AM UTC
- Pinout / Pin List Click Here (Member Only)
5787851-1 Details
-
Manufacturer Part Number:
5787851-1
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Board Mounting Option:
BOARD LOCK
-
Body/Shell Style:
RECEPTACLE
5787851-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
-
Yes, the 5787851-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
-
The 5787851-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector and cable assembly to maintain its integrity in outdoor environments.
-
The 5787851-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 5787851-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and backshells. However, it's essential to verify compatibility and ensure proper mating and assembly to ensure reliable performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
5787851-1 Overview

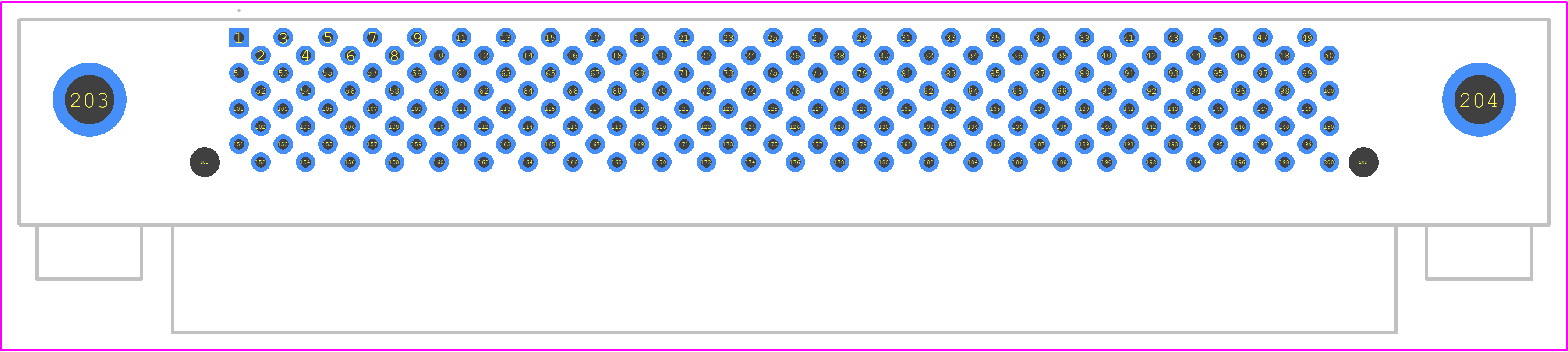

Use the download button to access the 5787851-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57878,
or try a keyword search, such as Telecom and Datacom Connectors
