- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 57PC3FS
- Part Number 57PC3FS
- Manufacturer Switchcraft
- Pin Count 7
- Part Category Connector
- Package Category Other
- Footprint Name Other - 57PC3FS-2
- Released Date Nov 30, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
57PC3FS Details
-
Manufacturer Part Number:
57PC3FS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
Switchcraft Conxall
-
YTEOL:
7
-
Additional Feature:
SHIELDED
-
Body Breadth:
0.839 inch
-
Body Depth:
0.591 inch
57PC3FS Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
-
Yes, the 57PC3FS is designed to withstand vibration and shock, making it suitable for use in high-vibration environments, such as in industrial or transportation applications.
-
Yes, the 57PC3FS has a sealed construction and is rated IP67, making it suitable for outdoor use and able to withstand exposure to moisture and dust.
-
The 57PC3FS has an operating temperature range of -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
-
Yes, the 57PC3FS is designed for use with cable assemblies and can be used with a variety of cable types and sizes.
Trust Checks
Expert Contribution
System Verified
Community Approved
57PC3FS Overview

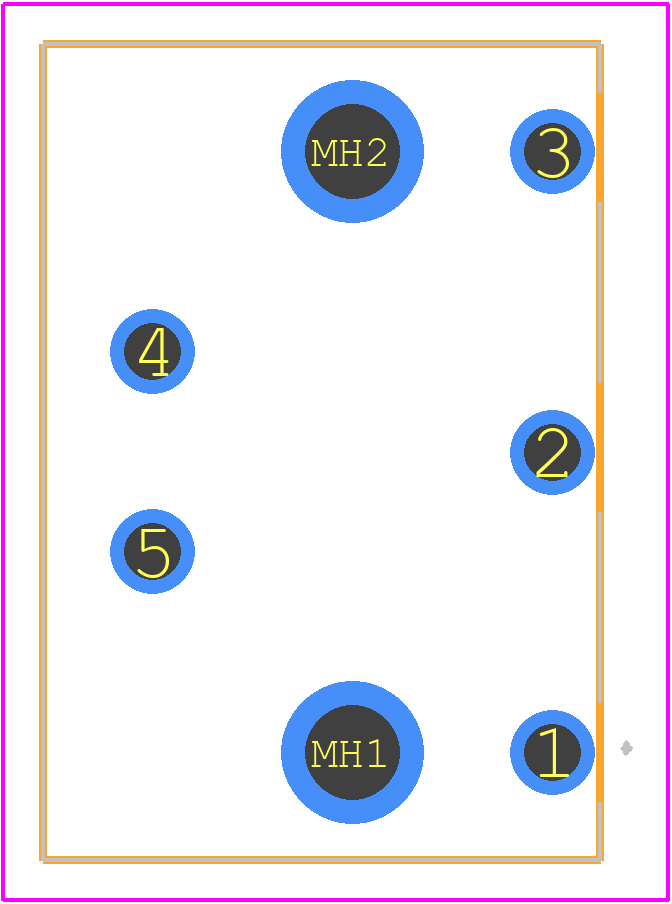

Use the download button to access the 57PC3FS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 57PC3,
or try a keyword search, such as DIN Connectors
