584-ADUM3160BRWZ - Analog Devices

Description: USB 2.0 compatible Low and full speed data rate: 1.5 Mbps and 12 Mbps Bidirectional communication 4.5 V to 5.5 V VBUS operation 7 mA maximum upstream supply current at 1.5 Mbps 8 mA maximum upstream supply current at 12 Mbps 2.3 mA maximum upstream idle current Upstream short-circuit protection Class 3A contact ESD performance per ANSI/ESD STM5.1-2007 High temperature operation: 105°C High common-mode transient immunity: >25 kV/μs 16-lead SOIC wide body package RoHS complian

Download 584-ADUM3160BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

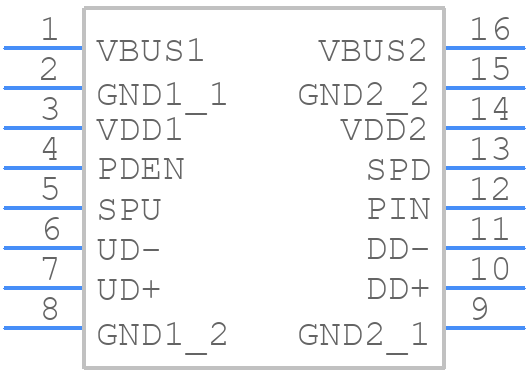

584-ADUM3160BRWZ - Analog Devices - PCB symbol
