593-232627-413F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 3 High Blue, Green, Yellow Diffused 2.8V Blue, 2V Green, 2V Yellow 20mA Blue, 10mA Green, 10mA Yellow Round with Domed Top Surface Mount, Right Angle

Download 593-232627-413F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 593-232627-413F model

Email notifications will be applied after download.

Send part feedback

Symbol

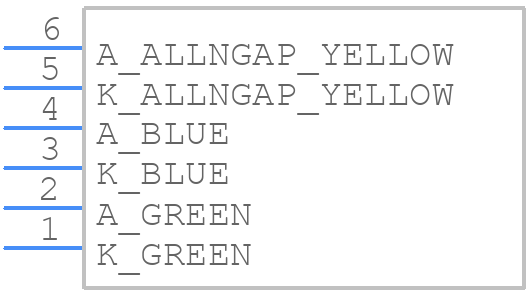

593-232627-413F - Dialight - PCB symbol

PCB Footprints

593-232627-413F - Dialight PCB footprint - Other - Other - 593-232627-413F-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 593-232627-413F
Part Number 593-232627-413F
Manufacturer Dialight
Pin Count 6
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 593-232627-413F-2
Released Date Feb 3, 2026
Last Modified Date Feb 3, 2026 10:54 PM UTC
Pinout / Pin List Click Here (Member Only)

593-232627-413F Details
