The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. However, it's essential to follow the soldering guidelines provided by Vishay Intertechnologies or consult with their technical support for specific recommendations.
The 593D107X9016E8T capacitor is designed to meet the requirements of high-reliability applications. Vishay Intertechnologies provides a 100% screening option for this capacitor, which includes accelerated life testing, to ensure its performance over time. However, it's crucial to consult with Vishay's technical support to understand the specific testing and screening options available.
The 593D107X9016E8T capacitor is designed for high-frequency applications, but its behavior under high-frequency conditions depends on the specific circuit design and PCB layout. It's recommended to consult with Vishay Intertechnologies' technical support or application notes for guidance on PCB design and layout considerations to ensure optimal performance.
Yes, it's essential to follow proper handling and storage procedures to prevent damage or degradation of the capacitor. Vishay Intertechnologies recommends storing the capacitors in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Additionally, handling the capacitors by the body rather than the leads can help prevent damage.
The 593D107X9016E8T capacitor is designed to meet the requirements of high-reliability applications, including those with high vibration or shock. However, it's crucial to consult with Vishay Intertechnologies' technical support to understand the specific testing and validation procedures for these environments, as well as any additional considerations for PCB design and component selection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
593D107X9016E8T Overview

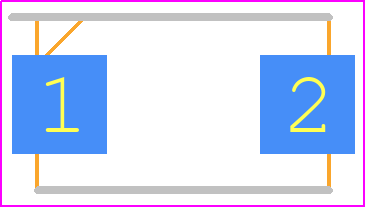

Use the download button to access the 593D107X9016E8T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 593D1,
or try a keyword search, such as Tantalum Capacitors
