Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the device is placed in a thermally efficient location to prevent overheating.
The 5962-0051206QPA has a high power dissipation, so it's crucial to implement proper thermal management. Use a heat sink with a thermal interface material, ensure good airflow, and consider using thermal vias to dissipate heat. The datasheet provides thermal resistance values to help with thermal design.
The 5962-0051206QPA has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Ensure that your design operates within the recommended temperature range for optimal performance.
When troubleshooting issues with the 5962-0051206QPA, start by reviewing the datasheet and application notes. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug signal issues. If the problem persists, consult with Texas Instruments' support resources or seek assistance from a qualified engineer.
Yes, the 5962-0051206QPA is a high-frequency device, and EMI/EMC considerations are crucial. Ensure that your design follows good EMI/EMC practices, such as using shielding, filtering, and proper grounding. The datasheet provides guidance on EMI/EMC considerations, and Texas Instruments offers additional resources for EMI/EMC design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-0051206QPA Overview

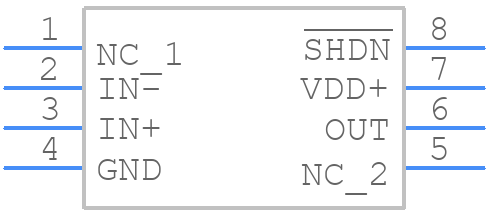

Use the download button to access the 5962-0051206QPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
