The recommended operating temperature range for the 5962-7700801VCA is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
To ensure proper powering and decoupling, follow the recommended power supply and decoupling capacitor values specified in the datasheet. Additionally, use a low-ESR capacitor (e.g., 10uF or 22uF) as close to the device as possible to filter out noise and reduce power supply ripple.
The maximum clock frequency supported by the 5962-7700801VCA is 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system's design and the quality of the clock signal.
The 5962-7700801VCA has an internal POR and BOR circuitry that helps ensure a reliable startup and operation. To handle these features, ensure that the power supply ramps up slowly (typically <10 ms) and that the voltage supply is stable before enabling the device. Additionally, consider adding external POR and BOR circuitry if your system requires more robust reset functionality.
The 5962-7700801VCA has limited I/O drive strength, which may impact system design. To mitigate this, consider using external buffers or drivers to increase the drive strength, especially when driving heavy loads or long transmission lines. Additionally, ensure that the system's I/O signals are properly terminated and matched to minimize signal reflections and degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-7700801VCA Overview

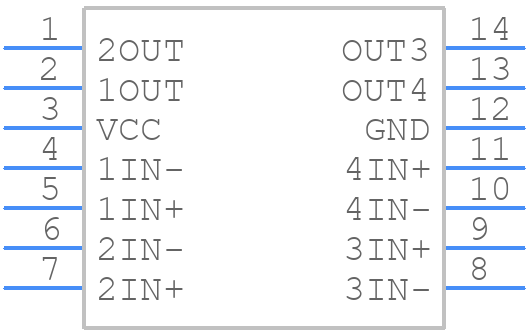

Use the download button to access the 5962-7700801VCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
