Description:The HS-3182 is a monolithic dielectrically isolated bipolar differential line driver designed to meet the specifications of ARINC 429. This Device is intended to be used with a companion chip, HS-3282 CMOS ARINC Bus Interface Circuit, which provides the data formatting and processor interface function. All logic inputs are TTL and CMOS compatible. In addition to the DATA (A) and DATA (B) inputs, there are also inputs for CLOCK and SYNC signals which are AND'd with the DATA inputs. This feature enhances syst
For optimal performance, it's recommended to follow the PCB layout guidelines provided in the datasheet, ensuring a solid ground plane, and using thermal vias to dissipate heat. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
To ensure EMC and reduce EMI, follow the recommended PCB layout, use shielding, and implement filtering and decoupling techniques. Also, consider using a common-mode choke and ferrite beads to reduce emissions.
Follow the recommended power-up and power-down sequences outlined in the datasheet to prevent damage or malfunction. Ensure that the power supply voltage is stable and within the recommended range before applying it to the device.
Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check the device's status registers and error flags to identify the source of the issue. Consult the datasheet and application notes for troubleshooting guidelines.
The device's performance and reliability can be affected by temperature, humidity, vibration, and radiation. Ensure that the operating conditions are within the recommended range, and consider using protective measures such as conformal coating or potting to mitigate environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-8687901EA Overview

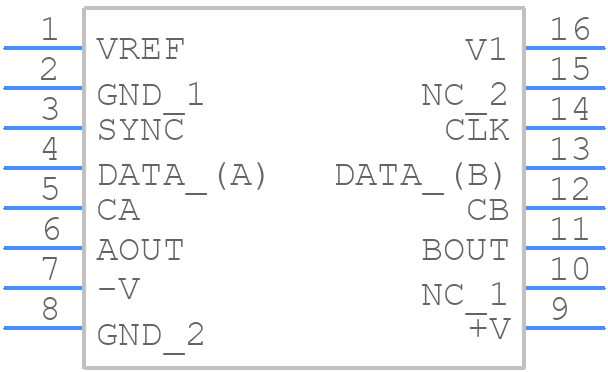

Use the download button to access the 5962-8687901EA schematic symbol, PCB footprint, and 3D model.
