5962-8760801GA - Texas Instruments

Description: Monolithic Sample-and-Hold Circuits, TO-99

Download 5962-8760801GA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

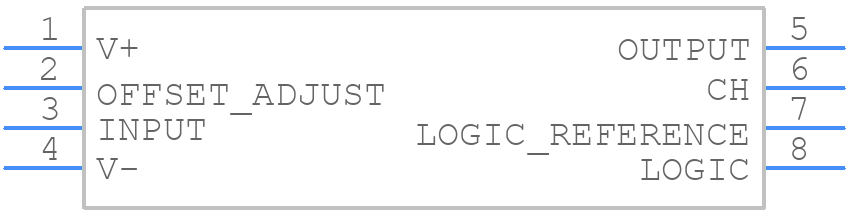

5962-8760801GA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

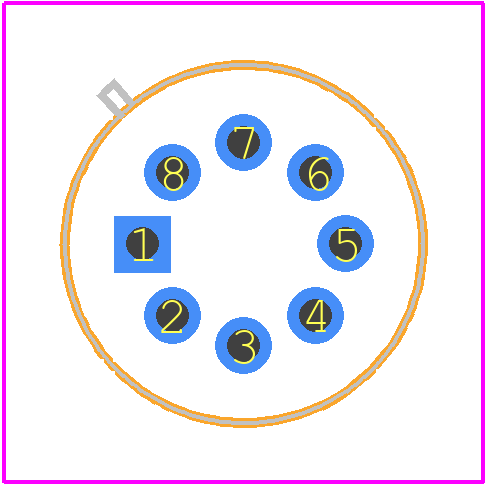

5962-8760801GA - Texas Instruments PCB footprint - Other - Other - LMC0008A
click to zoom
3D Models
5962-8760801GA - Texas Instruments - 3D model - Other - LMC0008A
click to zoom

5962-8760801GA Details

  • Manufacturer Part Number:

    5962-8760801GA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BCY

  • Pin Count:

    8

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Acquisition Time-Max:

    25 µs

  • Amplifier Type:

    SAMPLE AND HOLD CIRCUIT

  • JESD-30 Code:

    O-MBCY-W8

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Code:

    BCY

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    TRAY

  • Qualification Status:

    Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    MIL-PRF-38535

  • Subcategory:

    Sample and Hold Circuit

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

5962-8760801GA Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (-40°C to 125°C) and consider thermal management techniques such as heat sinks, thermal interfaces, and airflow.
  • Operating the device at the maximum junction temperature (TJ) of 150°C can reduce its lifespan and reliability. It's recommended to keep the junction temperature below 125°C to ensure optimal performance and longevity.
  • To handle ESD protection, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design.
  • The recommended power sequencing is to power up the device with a single supply voltage (VCC) between 3.135 V and 3.465 V. It's essential to ensure that the supply voltage is stable and within the recommended range to prevent damage or malfunction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5962-8760801GA Overview

Use the download button to access the 5962-8760801GA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-, or try a keyword search, such as Sample and Hold Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
