OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR
Count Direction:
UP
Family:
HC/UH
JESD-30 Code:
R-GDIP-T16
JESD-609 Code:
e0
Length:
19.56 mm
Load Capacitance (CL):
50 pF
Load/Preset Input:
NO
Logic IC Type:
BINARY COUNTER
Max Frequency@Nom-Sup:
13000000 Hz
Max I(ol):
0.0052 A
Mode of Operation:
ASYNCHRONOUS
Number of Bits:
14
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Packing Method:
TUBE
Power Supply Current-Max (ICC):
0.08 mA
Prop. Delay@Nom-Sup:
64 ns
Propagation Delay (tpd):
450 ns
Qualification Status:
Qualified
Screening Level:
MIL-STD-883
Seated Height-Max:
5.08 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Trigger Type:
NEGATIVE EDGE
Width:
7.62 mm
fmax-Min:
23 MHz
5962-8768001EA Frequently Asked Questions (FAQs)
For optimal performance, it's recommended to follow Texas Instruments' PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure EMC and EMI compliance, follow Texas Instruments' guidelines for PCB layout, component selection, and shielding. Use a metal shield around the device, and ensure that all cables and connectors are properly shielded and filtered. Additionally, perform EMC and EMI testing to validate compliance with relevant standards.
The 5962-8768001EA has a high reliability rating, with a failure rate of less than 1% per 1,000 hours of operation. However, this can vary depending on operating conditions, such as temperature, voltage, and usage patterns. Consult Texas Instruments' reliability data and perform your own testing to determine the device's reliability in your specific application.
The 5962-8768001EA is not specifically designed for radiation-hardened or high-reliability applications. However, Texas Instruments offers radiation-hardened and high-reliability versions of similar devices. Consult with Texas Instruments' sales team or application engineers to determine the best device for your specific requirements.
Latch-up and ESD can be mitigated by following proper handling and storage procedures, using ESD protection devices, and designing the PCB with latch-up prevention in mind. Additionally, ensure that the device is properly powered down during storage and transportation, and consider using a latch-up protection circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-8768001EA Overview

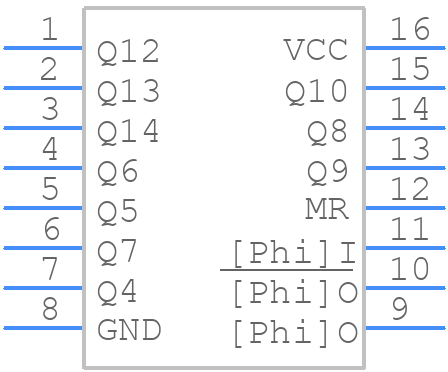

Use the download button to access the 5962-8768001EA schematic symbol and PCB footprint.
