Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (-40°C to 125°C) and consider derating the device's power dissipation accordingly. Additionally, ensure good thermal design and heat sinking to prevent overheating.
The 5962-8768104VEA has a high current consumption, which requires a robust power supply design to ensure stable operation. A low-ESR capacitor and a high-current-capable power supply are recommended to minimize voltage droop and ensure reliable operation.
To troubleshoot issues related to the internal voltage regulator, check the input voltage, output voltage, and current consumption. Ensure that the input voltage is within the recommended range, and the output voltage is stable. Also, verify that the device is not overheating, and the thermal design is adequate.
To minimize EMI and RFI issues, ensure that the system design includes proper shielding, grounding, and decoupling. Use a metal shield around the device, and connect it to a solid ground plane. Additionally, use decoupling capacitors to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-8768104VEA Overview

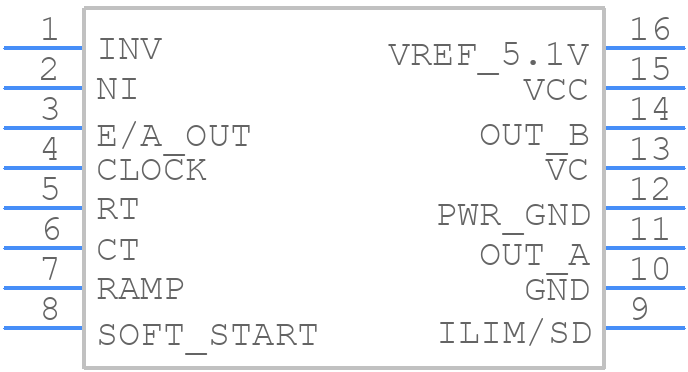

Use the download button to access the 5962-8768104VEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Switching Regulator or Controllers
