5962-8865002RA - Analog Devices

Description: Analog to Digital Converters - ADC 8 BIT ADC WITH T/H IC

Download 5962-8865002RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

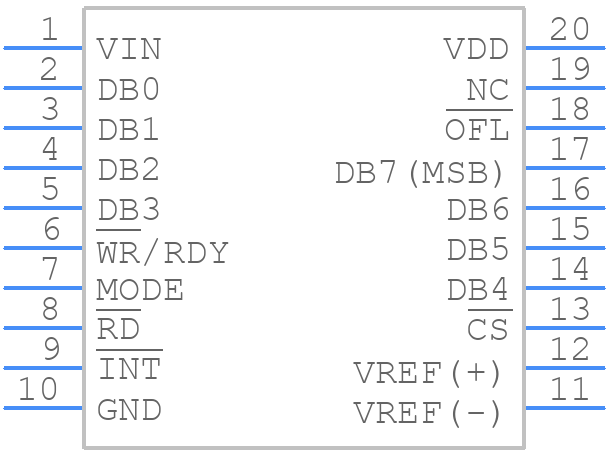

Symbol
5962-8865002RA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
5962-8865002RA - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - q-20
click to zoom

5962-8865002RA Details

  • Manufacturer Part Number:

    5962-8865002RA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    CERAMIC, DIP-20

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    2.5 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-GDIP-T20

  • JESD-609 Code:

    e0

  • Length:

    25.195 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Qualified

  • Sample and Hold / Track and Hold:

    TRACK

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

5962-8865002RA Frequently Asked Questions (FAQs)

  • A good PCB layout for the 5962-8865002RA involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and electromagnetic interference (EMI).
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 10uF) on the output pin.
  • The recommended operating temperature range for the 5962-8865002RA is -40°C to +125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • To troubleshoot common issues with the 5962-8865002RA, start by verifying the PCB layout and component values, ensuring that the device is properly powered and decoupled. Check for noise and EMI issues, and verify that the input and output signals are within the specified ranges. If issues persist, consult the datasheet and application notes for guidance.
  • Yes, the 5962-8865002RA is susceptible to EMI and RFI. To minimize these effects, use shielding, keep sensitive traces and components away from noise sources, and use EMI filters or common-mode chokes on the input and output lines.
