5962-9457201MEA - Analog Devices

Description: Dual, Low Noise, Wideband Variable Gain Amplifier, 0 dB To +40 dB Gain

Download 5962-9457201MEA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

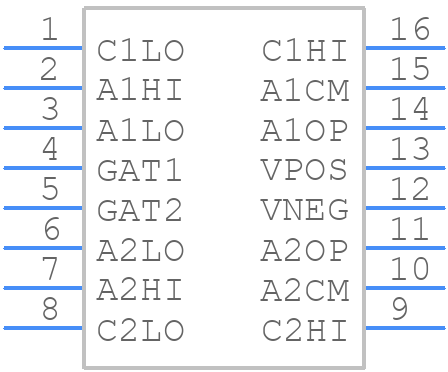

5962-9457201MEA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
5962-9457201MEA - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-16_2023
click to zoom

5962-9457201MEA Details

  • Manufacturer Part Number:

    5962-9457201MEA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    CERDIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    Q-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.05 mm

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -4.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

5962-9457201MEA Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, which include keeping the device away from high-current carrying traces, using a solid ground plane, and providing adequate thermal relief. Additionally, a thermal pad on the bottom of the package can help dissipate heat.
  • To ensure EMC, follow proper PCB design and layout practices, such as using a shielded enclosure, minimizing loop areas, and using filtering components. Additionally, Analog Devices provides EMC guidelines and application notes that can be consulted for specific guidance.
  • Analog Devices provides reliability data and failure rate estimates for their devices, which can be found in the device's reliability report or by contacting their technical support. The 5962-9457201MEA is a high-reliability device, but it's essential to consult the specific reliability data for your application.
  • The 5962-9457201MEA is not specifically designed for radiation-hardened or high-temperature environments. However, Analog Devices offers other devices that are designed for these applications. Consult their product portfolio or contact their technical support for guidance on selecting the appropriate device.
  • Analog Devices provides guidelines for soldering and assembly, including recommended soldering temperatures, times, and techniques. It's essential to follow these guidelines to ensure the device's reliability and performance.
