5962-9457203MPA footprint, schematic symbol and 3D model by Analog Devices

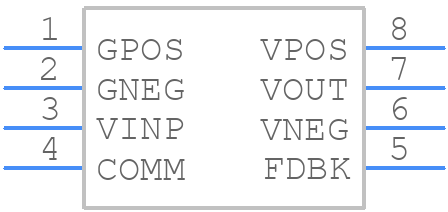

Symbol

click to zoom

PCB Footprints

5962-9457203MPA - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-8_2022

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5962-9457203MPA
Part Number 5962-9457203MPA
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - Q-8_2022
Released Date May 16, 2022
Last Modified Date Nov 6, 2024 4:56 PM UTC
Pinout / Pin List Click Here (Member Only)

5962-9457203MPA Details

Manufacturer Part Number:
5962-9457203MPA
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
CERAMIC, DIP-8
Pin Count:
8
Manufacturer Package Code:
Q-8
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-GDIP-T8
JESD-609 Code:
e0
Neg Supply Voltage-Max (Vsup):
-6.3 V
Neg Supply Voltage-Min (Vsup):
-4.75 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Qualified
Screening Level:
MIL-STD-883 Class B
Seated Height-Max:
5.08 mm
Supply Voltage-Max (Vsup):
6.3 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

5962-9457203MPA Frequently Asked Questions (FAQs)

For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure EMC, follow proper PCB design and layout practices, such as using shielding, filtering, and grounding techniques. Additionally, consider using EMI filters and shielding components in your design. Analog Devices also provides EMC guidelines and application notes for specific products.
Analog Devices provides reliability data for their products, including the 5962-9457203MPA. According to the manufacturer, this device has a typical failure rate of < 10 FIT (failures per 10^9 hours) at 25°C. However, actual reliability may vary depending on operating conditions, usage, and environmental factors.
The 5962-9457203MPA is not specifically designed for radiation-hardened or high-reliability applications. However, Analog Devices offers radiation-hardened and high-reliability versions of some products. For such applications, it's recommended to consult with Analog Devices' sales and engineering teams to determine the best solution.
Common sources of noise and interference in the 5962-9457203MPA include power supply noise, electromagnetic interference, and thermal noise. To mitigate these effects, use proper power supply decoupling, filtering, and shielding techniques. Additionally, consider using noise-reducing components and following Analog Devices' application notes for noise reduction.

Trust Checks

Community Provided

System Verified

Community Approved

5962-9457203MPA Overview

Use the download button to access the 5962-9457203MPA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 5962-, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
