Texas Instruments recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (-40°C to 125°C) and consider the device's power dissipation, thermal resistance, and junction temperature. Proper thermal design, heat sinking, and cooling mechanisms can help mitigate thermal-related issues.
The input capacitor should have a minimum capacitance of 10uF, with a voltage rating of at least 6.3V. The output capacitor should have a minimum capacitance of 22uF, with a voltage rating of at least 6.3V. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and the PCB layout is correct.
Operating the device at a lower input voltage than recommended may result in reduced output voltage regulation, increased output voltage ripple, and decreased efficiency. It may also lead to increased thermal stress and reduced device reliability. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-9554901NXDR Overview

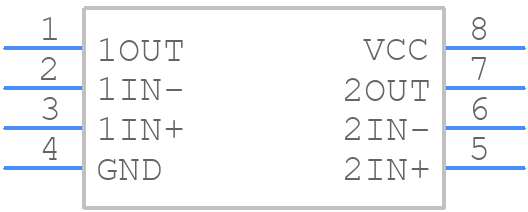

Use the download button to access the 5962-9554901NXDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
