Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance and capacitance.
The 5962-9673802VCA is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and avoiding hot spots on the PCB.
Exceeding the maximum junction temperature (Tj) can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. Ensure the device operates within the specified temperature range to maintain reliability and performance.
The 5962-9673802VCA has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly, storage, and handling. Use ESD-safe materials, wrist straps, and mats to prevent damage.
The 5962-9673802VCA requires proper power sequencing to prevent damage or malfunction. Ensure that the power supplies are sequenced correctly, and the device is powered up and down in the recommended order.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-9673802VCA Overview

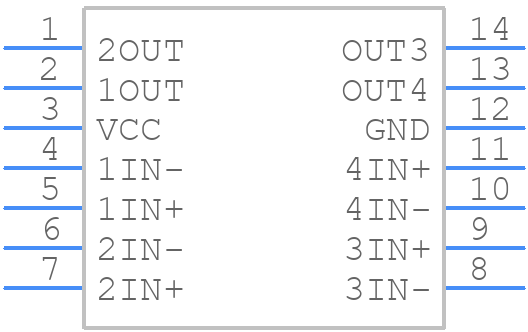

Use the download button to access the 5962-9673802VCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
