5AGXFB7H4F35I5N - Intel

Description: Arria V GX Field Programmable Gate Array (FPGA) IC 544 27695104 504000 1152-BBGA, FCBGA Exposed Pad

Download 5AGXFB7H4F35I5N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5AGXFB7H4F35I5N - Intel - PCB symbol
click to zoom
PCB Footprints

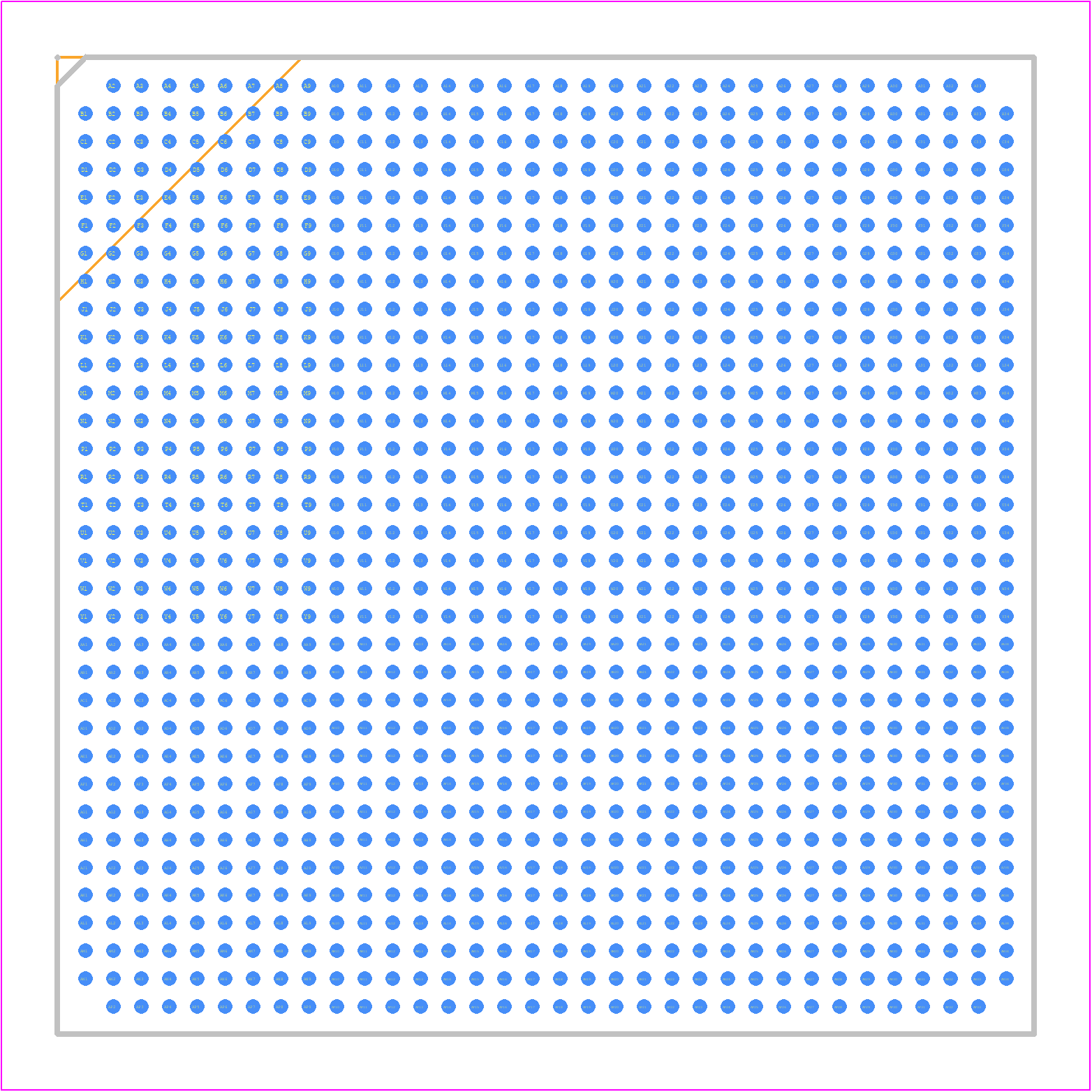

5AGXFB7H4F35I5N - Intel PCB footprint - BGA - BGA - 1152-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Thermal Composite - A:2.70 - D2:22.1
click to zoom
3D Models
5AGXFB7H4F35I5N - Intel - 3D model - BGA - 1152-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Thermal Composite - A:2.70 - D2:22.1
click to zoom

5AGXFB7H4F35I5N Details

  • Manufacturer Part Number:

    5AGXFB7H4F35I5N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, FBGA-1152

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    622 MHz

  • JESD-30 Code:

    S-PBGA-B1152

  • JESD-609 Code:

    e1

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    19024

  • Number of Inputs:

    704

  • Number of Logic Cells:

    504000

  • Number of Outputs:

    704

  • Number of Terminals:

    1152

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    19024 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1152,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Max:

    1.13 V

  • Supply Voltage-Min:

    1.07 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    35 mm

5AGXFB7H4F35I5N Frequently Asked Questions (FAQs)

  • Intel recommends a 4-6 layer PCB stackup with a minimum of 2 mil trace width and 2 mil spacing. A dedicated power plane and a solid ground plane are also recommended for optimal signal integrity.
  • Use the Intel Power Estimator tool to estimate power consumption based on your design's specific requirements. Optimize power consumption by using low-power modes, clock gating, and dynamic voltage and frequency scaling.
  • Use a heat sink with a thermal interface material, ensure good airflow, and consider using a fan. Keep the FPGA away from other heat sources and ensure good thermal conduction paths.
  • Use a reliable configuration device, such as a flash memory or a configuration FPGA. Ensure proper power sequencing, and use a robust boot-up sequence with error detection and correction mechanisms.
  • Use differential signaling, controlled impedance, and matched transmission lines. Minimize signal routing, use signal shielding, and avoid vias and stubs in high-speed signal paths.
