5AGZME3E3H29I4N - Intel

5AGZME3E3H29I4N Details

• Manufacturer Part Number:

  5AGZME3E3H29I4N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

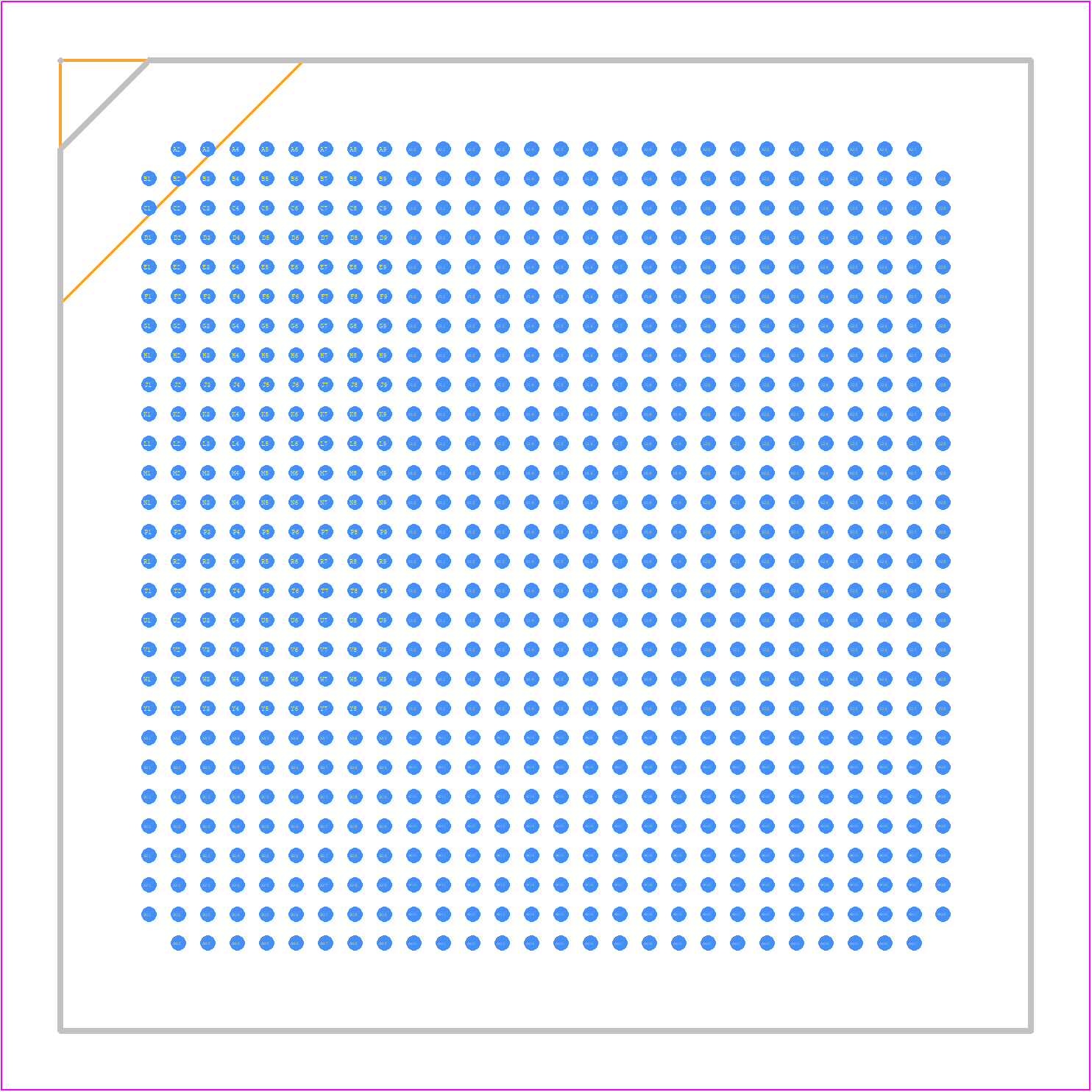

• Package Description:

  HFBGA-780

• ECCN Code:

  3A991

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Clock Frequency-Max:

  670 MHz

• JESD-30 Code:

  S-PBGA-B780

• Length:

  33 mm

• Number of CLBs:

  13584

• Number of Inputs:

  342

• Number of Logic Cells:

  360000

• Number of Outputs:

  342

• Number of Terminals:

  780

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  13584 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA780,28X28,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  3.6 mm

• Supply Voltage-Max:

  0.88 V

• Supply Voltage-Min:

  0.82 V

• Supply Voltage-Nom:

  0.85 V

• Surface Mount:

  YES

• Technology:

  28 nm

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  33 mm
