Intel provides a PCB design guide and thermal management guidelines in the 'Intel FPGA PCB Design Guidelines' document, which can be found on their website. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
Intel provides a power estimator tool, 'Early Power Estimator (EPE)', which can help estimate power consumption based on the design's requirements. Additionally, implementing power-saving features like clock gating, dynamic voltage and frequency scaling, and using low-power modes can help reduce power consumption.
Intel recommends using the 'Intel FPGA Security' features, such as bitstream encryption, authentication, and secure boot mechanisms. Additionally, implementing secure key management, using secure protocols for configuration and data transfer, and following secure coding practices can help prevent unauthorized access.
Intel provides guidelines for signal integrity and EMI mitigation in the 'Intel FPGA Signal Integrity and EMI Design Guidelines' document. Following best practices for PCB layout, using proper termination and filtering, and implementing EMI reduction techniques like spread spectrum clocking can help minimize EMI and ensure signal integrity.
Intel recommends following the 'Intel FPGA Testing and Validation' guidelines, which include functional testing, timing closure, and signal integrity testing. Additionally, using Intel's 'Quartus Prime' software and 'ModelSim' simulator can help validate the design and ensure it meets the required specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5CEFA9F27C8N Overview

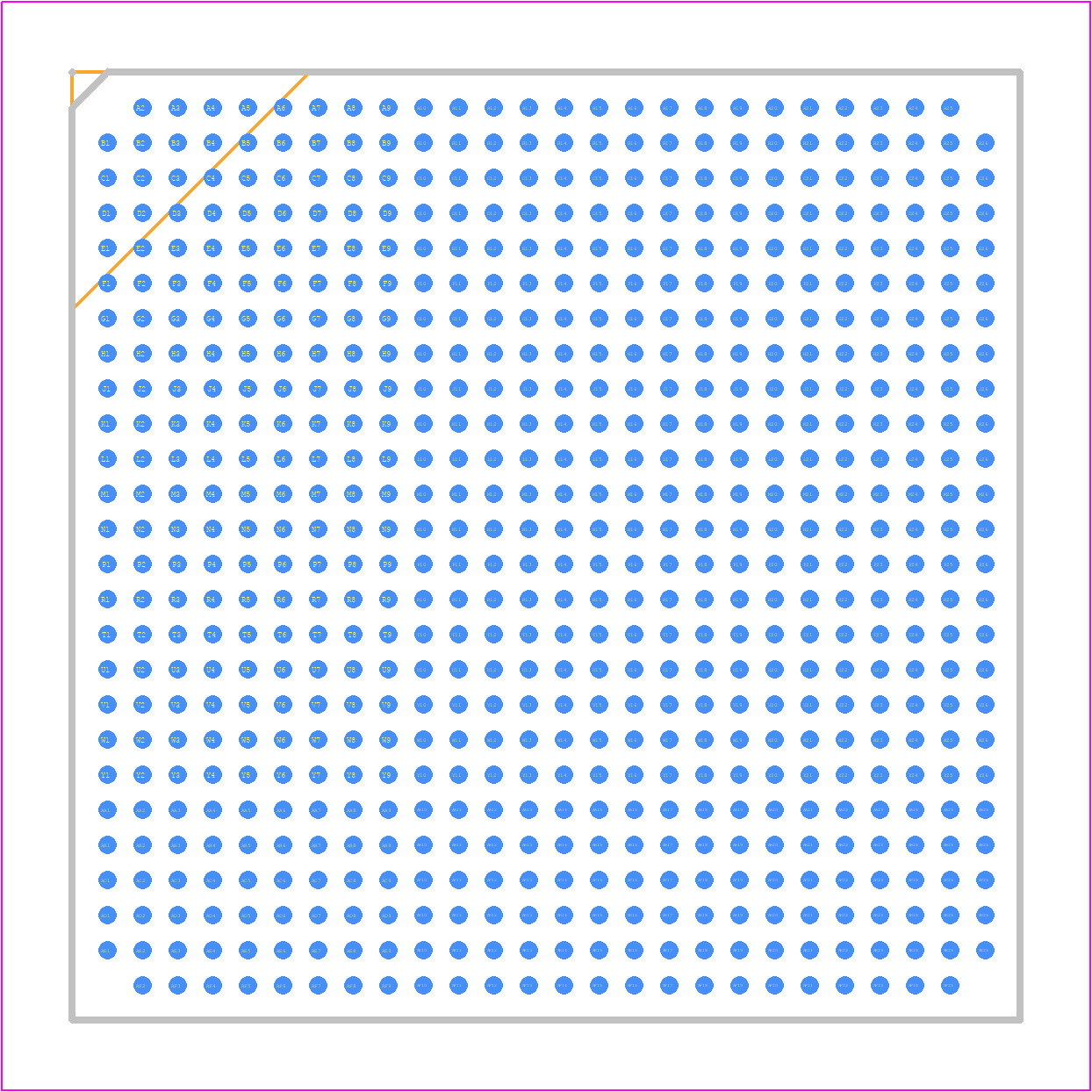

Use the download button to access the 5CEFA9F27C8N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5CEFA,
or try a keyword search, such as Field Programmable Gate Arrays
