5CGXFC7D7F27C8N - Intel

Description: FPGA - Field Programmable Gate Array FPGA - Cyclone V GX 5648 LABs 336 IOs

Download 5CGXFC7D7F27C8N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5CGXFC7D7F27C8N - Intel - PCB symbol
click to zoom
PCB Footprints

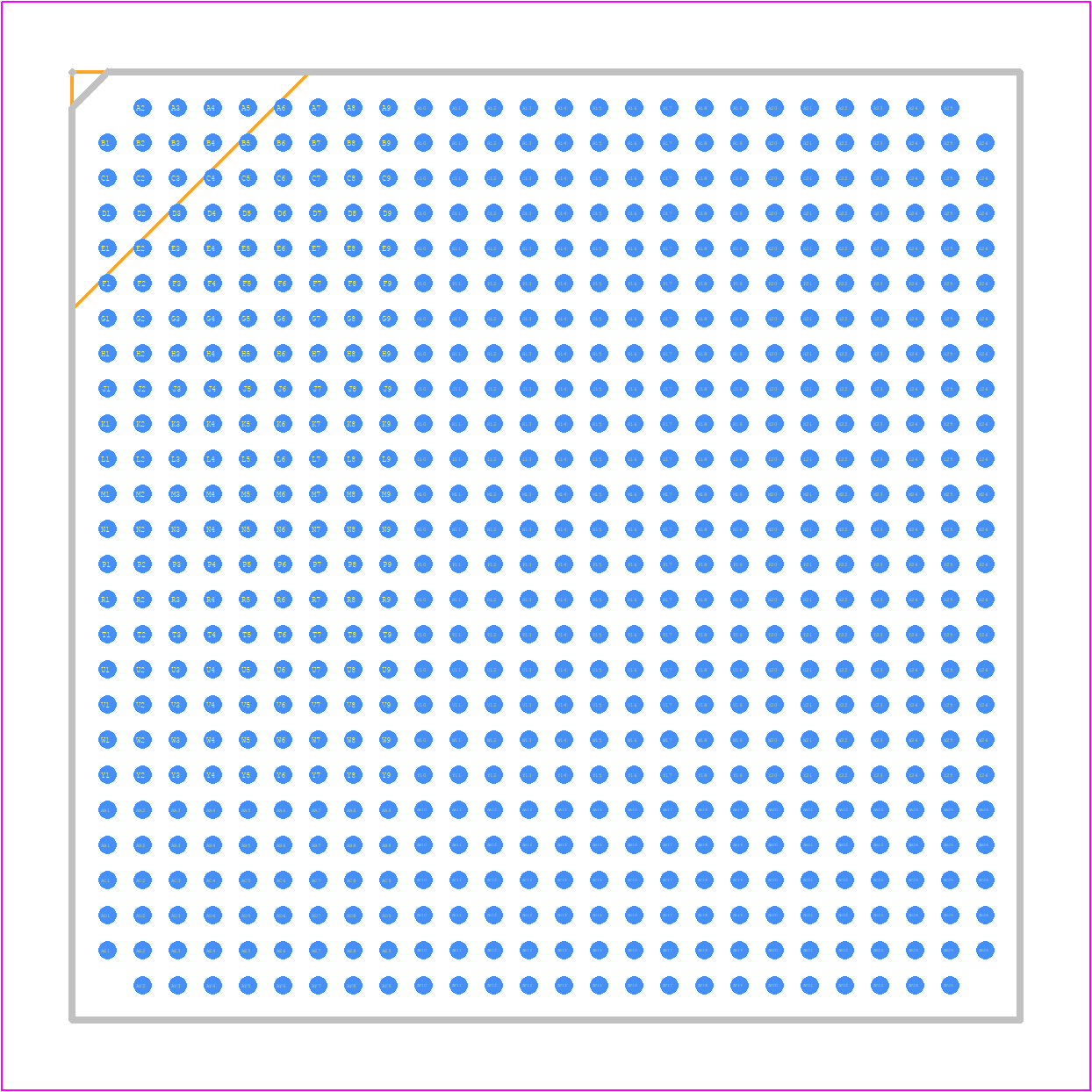

5CGXFC7D7F27C8N - Intel PCB footprint - BGA - BGA - 672-Pin FineLine Ball-Grid Array (FBGA)
click to zoom
3D Models
5CGXFC7D7F27C8N - Intel - 3D model - BGA - 672-Pin FineLine Ball-Grid Array (FBGA)
click to zoom

5CGXFC7D7F27C8N Details

  • Manufacturer Part Number:

    5CGXFC7D7F27C8N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, FBGA-672

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    3A991

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B672

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    3

  • Number of Inputs:

    336

  • Number of Logic Cells:

    149500

  • Number of Outputs:

    336

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    85 °C

  • Organization:

    5648 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA672,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    1.13 V

  • Supply Voltage-Min:

    1.07 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 28 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    27 mm

5CGXFC7D7F27C8N Frequently Asked Questions (FAQs)

  • Intel recommends a 4-6 layer PCB stackup with a minimum of 2 mil trace width and 2 mil spacing. A dedicated ground plane and power plane are also recommended for optimal signal integrity.
  • Use the Intel Power Estimator tool to estimate power consumption based on your design's specific requirements. Optimize power consumption by using low-power modes, clock gating, and dynamic voltage and frequency scaling.
  • Use a heat sink with a thermal interface material, ensure good airflow, and consider using a fan. Keep the FPGA away from other heat sources and ensure good thermal conduction paths.
  • Use a reliable configuration device, such as a flash memory or a configuration FPGA. Ensure the configuration clock is stable and within the recommended frequency range.
  • Use differential signaling, keep clock lines short, and use shielding and grounding techniques to minimize EMI. Follow Intel's signal integrity guidelines and use simulation tools to validate your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5CGXFC7D7F27C8N Overview

Use the download button to access the 5CGXFC7D7F27C8N schematic symbol, PCB footprint, and 3D model.
