5CSXFC6C6U23I7N - Intel

Description: Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Cyclone® V SX FPGA - 110K Logic Elements 800MHz 672-UBGA (23x23)

Download 5CSXFC6C6U23I7N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

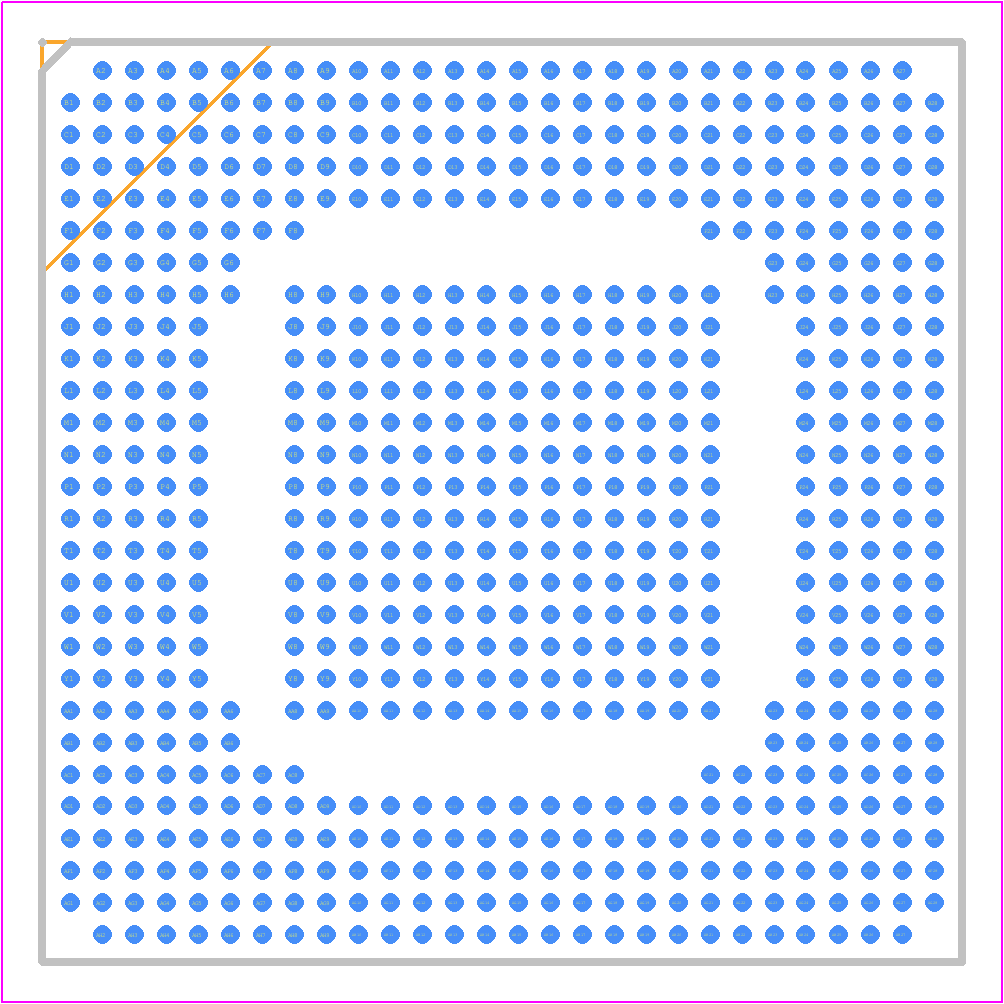

5CSXFC6C6U23I7N - Intel PCB footprint - BGA - BGA - 672-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.85
click to zoom
3D Models
5CSXFC6C6U23I7N - Intel  - 3D model - BGA - 672-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.85
click to zoom

5CSXFC6C6U23I7N Details

  • Manufacturer Part Number:

    5CSXFC6C6U23I7N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, UBGA-672

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • JESD-30 Code:

    S-PBGA-B672

  • Length:

    23 mm

  • Number of Inputs:

    326

  • Number of Outputs:

    326

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4191 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA672,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max:

    1.13 V

  • Supply Voltage-Min:

    1.07 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    23 mm

5CSXFC6C6U23I7N Frequently Asked Questions (FAQs)

  • The maximum operating frequency depends on the specific configuration and implementation, but Intel FPGAs typically support frequencies up to 500 MHz or more.
  • To optimize power consumption, use Intel's PowerPlay Early Power Estimator (EPE) tool, implement power-gating, and optimize clock frequencies, among other techniques.
  • Use Intel's UniPHY IP core, which provides a pre-verified, high-performance DDR memory interface solution, and follow Intel's guidelines for DDR interface implementation.
  • Use Intel's Signal Integrity Tool (SIT) to analyze and optimize signal integrity, and follow best practices for PCB design, such as using differential pairs and minimizing signal lengths.
  • Use Intel's Quartus Prime Design Software, which provides a comprehensive design environment, including synthesis, placement, and routing tools, as well as simulation and verification capabilities.
