The 5M2210ZF324I5N FPGA has an industrial temperature range of -40°C to 100°C, making it suitable for use in a wide range of environments.
Intel recommends using an external POR circuit with a voltage supervisor IC, such as the MAX809, to ensure a reliable power-on reset. The FPGA also has an internal POR circuit, but it may not be sufficient for all applications.
Intel provides a PCB layout and routing guide for the 5M2210ZF324I5N FPGA, which recommends using a 4-layer PCB with a dedicated power plane, and following specific routing guidelines for clock and signal traces.
To optimize timing closure, use the Intel Quartus Prime software to analyze and optimize the design's timing constraints, and consider using techniques such as pipelining, retiming, and clock domain crossing to improve timing performance.
Intel recommends using a combination of bulk capacitors (e.g., 10uF) and bypass capacitors (e.g., 0.1uF) placed close to the FPGA's power pins, with a decoupling capacitor value of 0.01uF to 0.1uF per power pin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5M2210ZF324I5N Overview

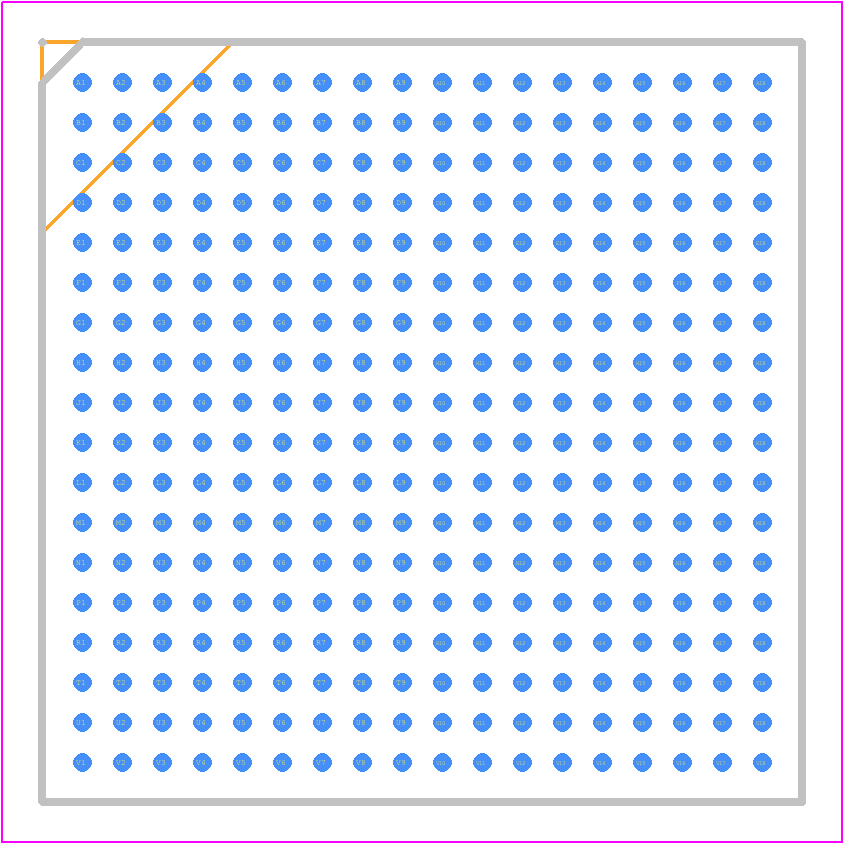

Use the download button to access the 5M2210ZF324I5N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5M221,
or try a keyword search, such as Programmable Logic Devices
Suggested Parts
If you searched for 5M2210ZF324I5N, you might also be interested in these parts:
