5P49V5913B000NLGI - Renesas Electronics

Description: The IDT 5P49V5913 is low-power programmable clock generator with best-in-class jitter performance and design flexibility with universal outputs capable of generating any output frequency. The 5P49V5913 is intended for high performance consumer, networking, industrial, computing, and data-communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I2C interface. This is IDT’s fifth generation of programmable clock technology (VersaClock 5). The fre

Download 5P49V5913B000NLGI Model

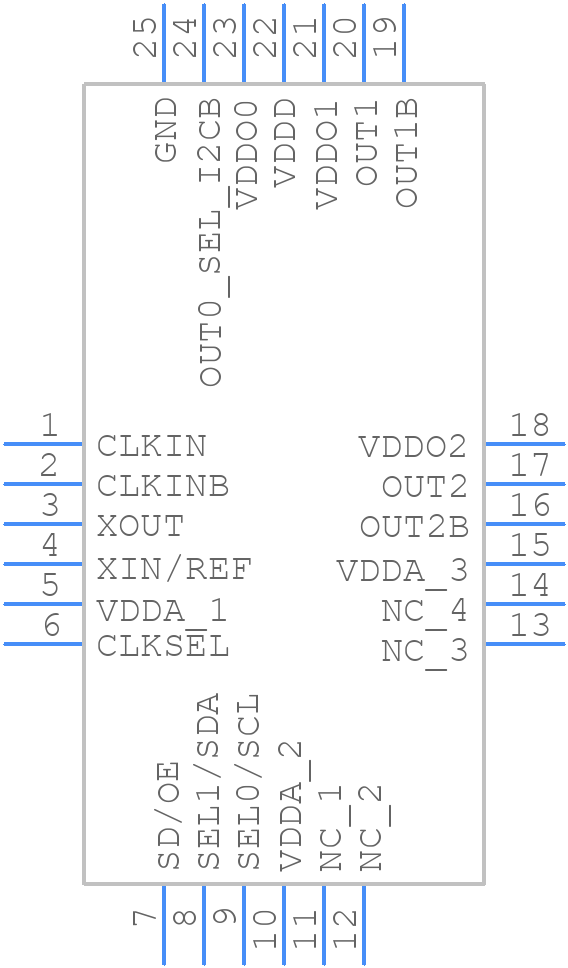

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P49V5913B000NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P2_
click to zoom
3D Models
5P49V5913B000NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24P2_
click to zoom

5P49V5913B000NLGI Details

  • Manufacturer Part Number:

    5P49V5913B000NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO OPREATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    40 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5P49V5913B000NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN983) and evaluation board documentation. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and optimize performance.
  • The 5P49V5913B000NLGI has a complex configuration process involving register settings and external resistors. Renesas provides a configuration tool (e.g., ClockGen) and application notes (e.g., AN982) to help engineers configure the device for their specific frequency requirements.
  • The maximum output current for each clock output is not explicitly stated in the datasheet. However, according to Renesas' application notes, the typical output current is around 10mA per output, but this can vary depending on the specific configuration and load conditions.
  • Renesas recommends using a high-quality, low-ESR capacitor (e.g., 0.1uF) for power supply decoupling and bypassing. Additionally, ensure that the power supply voltage is within the recommended range (1.71V to 1.89V) and that the device is properly grounded.
  • The 5P49V5913B000NLGI has a maximum junction temperature of 125°C. To ensure reliable operation, Renesas recommends using a thermal pad or heat sink, and following proper PCB design and layout guidelines to minimize thermal resistance.
