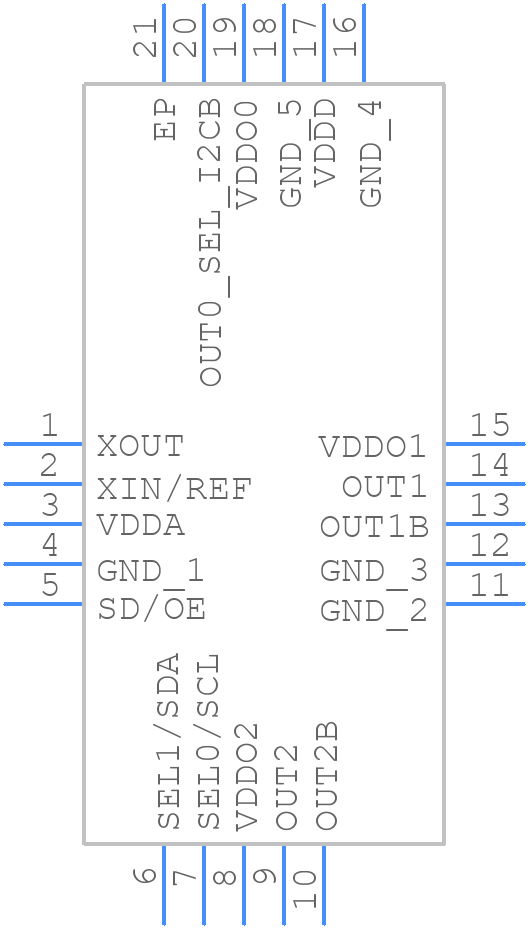

5P49V5944B000NDGI - Renesas Electronics

5P49V5944B000NDGI Details

• Manufacturer Part Number:

  5P49V5944B000NDGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  VFQFPN

• Package Description:

  VFQFPN-20

• Pin Count:

  20

• Manufacturer Package Code:

  NDG20P2

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Additional Feature:

  IT ALSO OPREATES AT 3.3V AND 2.5V NOMINAL SUPPLY

• JESD-30 Code:

  S-XQCC-N20

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  350 MHz

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.12SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Primary Clock/Crystal Frequency-Nom:

  200 MHz

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  34 mA

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  3 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, PROCESSOR SPECIFIC
