5P49V60A000NLG2 - Renesas Electronics

Description: The 5P49V60 is a member of Renesas' VersaClock® 6E programmable clock generator family. The 5P49V60 is intended for automotive applications such as infotainment, dashboard, video processing, in-vehicle networking, as well as applications based on PCI-Express or USB 3. The reference clock can come from one of the two redundant clock inputs. A glitchless manual switchover function allows one of the redundant clocks to be selected during normal operation. Configurations may be stored in on-chip One-Time Progra

Download 5P49V60A000NLG2 Model
Schematic

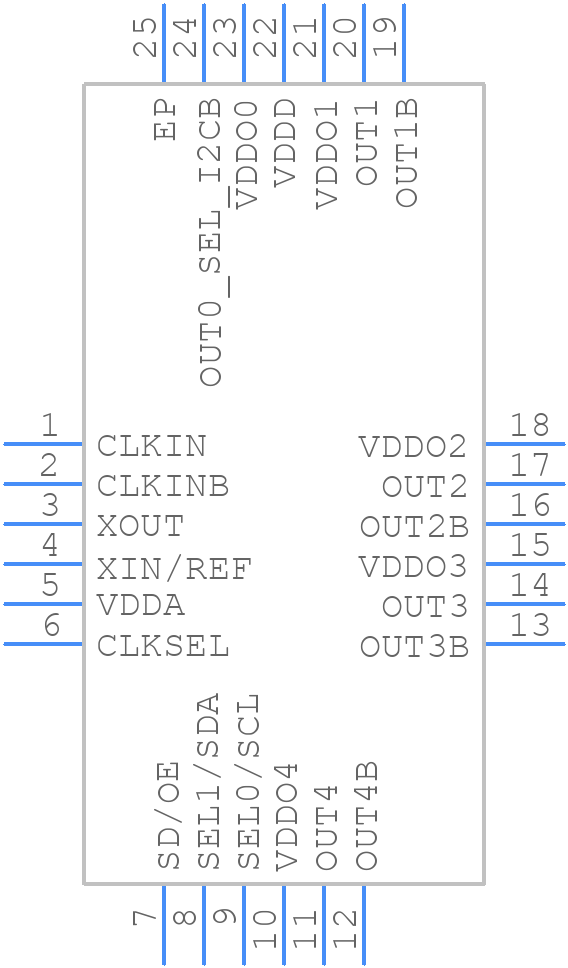

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P49V60A000NLG2 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24S3
click to zoom
3D Models
5P49V60A000NLG2 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24S3
click to zoom

5P49V60A000NLG2 Details

  • Manufacturer Part Number:

    5P49V60A000NLG2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24S3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPREATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    350 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5P49V60A000NLG2 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • The device has a thermal pad on the bottom side, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, ensure good airflow and consider using a heat sink if the device is expected to operate at high temperatures.
  • The maximum clock frequency supported by the 5P49V60A000NLG2 is 60 MHz. However, the actual frequency may vary depending on the specific application and system requirements.
  • The output voltage of the 5P49V60A000NLG2 can be configured using the VID[5:0] pins. The specific voltage output is determined by the combination of the VID pins, which are detailed in the datasheet.
  • The Power Good (PG) output signal indicates when the output voltage is within the specified tolerance. It can be used to monitor the power supply status and ensure that the system is operating within a valid voltage range.
