5P49V6901A000NLGI8 - Renesas Electronics

Description: The 5P49V6901 is a programmable clock generator intended for high performance consumer, networking, industrial, computing, and data-communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I2C interface. This is IDTs sixth generation of programmable clock technology (VersaClock® 6). The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. A glitchless manual switchover

Download 5P49V6901A000NLGI8 Model

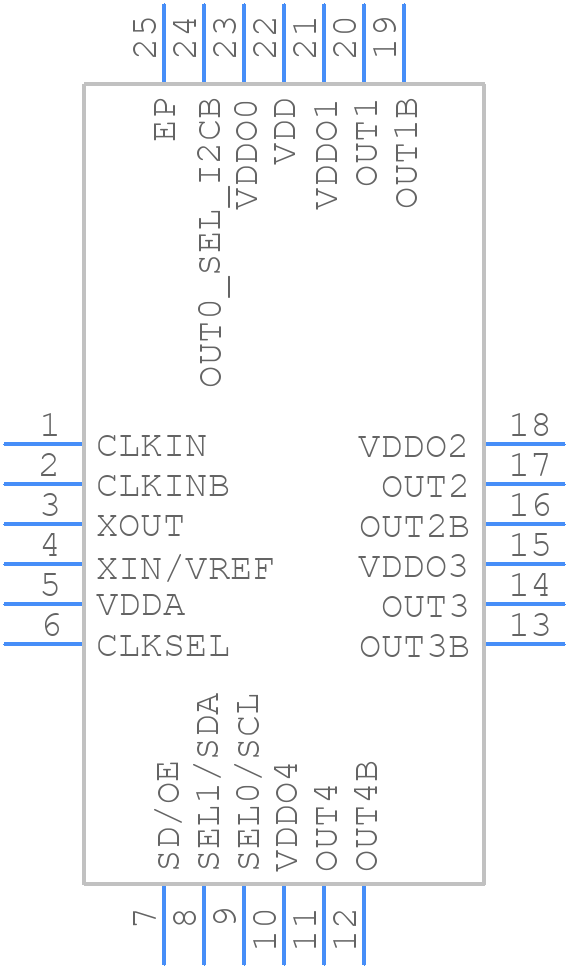

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P49V6901A000NLGI8 - Renesas Electronics PCB footprint - Other - Other - NLG24P2
click to zoom
3D Models
5P49V6901A000NLGI8 - Renesas Electronics  - 3D model - Other - NLG24P2
click to zoom

5P49V6901A000NLGI8 Details

  • Manufacturer Part Number:

    5P49V6901A000NLGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    VFQFPN

  • Package Description:

    4 X 4 MM, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO OPREATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    40 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

5P49V6901A000NLGI8 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the input clock signal. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure a stable state during power-up, it is recommended to add a power-on reset (POR) circuit to the VDD and VDDA pins. This helps to reset the device and ensure a stable output clock signal.
  • The maximum input clock frequency that the 5P49V6901A000NLGI8 can handle is 350 MHz. Exceeding this frequency may result in device malfunction or incorrect output clock signals.
  • Yes, the 5P49V6901A000NLGI8 can be used in a system with multiple clock domains. The device has multiple output clock signals that can be configured to support different clock frequencies and domains.
  • To troubleshoot issues with the output clock signal, check the input clock signal quality, ensure proper power supply and decoupling, and verify the device configuration and programming. Also, use oscilloscopes or logic analyzers to monitor the output clock signal and identify any anomalies.
