5P50901NBGI - Renesas Electronics

Description: The IDT5P50901/2/3/4 is a family of 1.8V low power, spread spectrum clock generators capable of reducing EMI radiation from an input clock. Spread spectrum technique is capable of reducing the harmonic frequency amplitude peaks by several dB.

Download 5P50901NBGI Model
Schematic

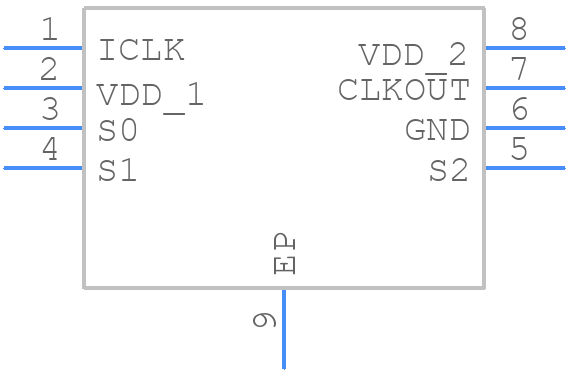

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P50901NBGI - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn8-ren2
click to zoom
3D Models
5P50901NBGI - Renesas Electronics  - 3D model - Small Outline No-lead - dfn8-ren2
click to zoom

5P50901NBGI Details

  • Manufacturer Part Number:

    5P50901NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    8

  • Manufacturer Package Code:

    NBG8P1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Output Clock Frequency-Max:

    170 MHz

  • Package Code:

    LFQFP

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    170 MHz

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

5P50901NBGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN0265EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • The 5P50901NBGI has a built-in power sequencing engine that can be configured using the I2C interface. Renesas provides a power sequencing guide in their application note (R01AN0264EJ0100) which includes examples and configuration settings.
  • While the datasheet provides overall current ratings, the maximum current rating for each output rail depends on the specific configuration and application. Renesas recommends consulting their application engineers or performing thermal simulations to determine the maximum current rating for each output rail.
  • Renesas provides a troubleshooting guide in their application note (R01AN0266EJ0100) which includes common issues, symptoms, and solutions. Additionally, engineers can use the device's built-in diagnostic features, such as the I2C interface and status registers, to debug issues.
  • Renesas provides a list of recommended components for the external power stage in their datasheet and application notes. These components include MOSFETs, inductors, and capacitors from various manufacturers, such as Texas Instruments, Vishay, and Murata.
