Description:The IDT5P50901/2/3/4 is a family of 1.8V low power, spread spectrum clock generators capable of reducing EMI radiation from an input clock. Spread spectrum technique is capable of reducing the harmonic frequency amplitude peaks by several dB.
Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal design considerations, such as placing thermal vias under the device, using a solid ground plane, and minimizing thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow Renesas' recommended operating conditions, including derating the output current and voltage according to the junction temperature. Additionally, consider using thermal management techniques, such as heat sinks or fans, to keep the device within its recommended operating temperature range.
Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be placed as close as possible to the device pins, and the PCB layout should be designed to minimize parasitic inductance and resistance.
To troubleshoot PGOOD issues, check the voltage regulator's output voltage, input voltage, and enable pin (EN) to ensure they are within the recommended operating conditions. Also, verify that the PGOOD pin is properly connected to the system's power management circuitry and that there are no signal integrity issues.
Not using the built-in soft-start feature may result in excessive inrush current, which can cause voltage drops, electromagnetic interference (EMI), and even damage to the device or surrounding components. It's recommended to use the soft-start feature to ensure a controlled startup sequence and minimize potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5P50901NBGI8 Overview

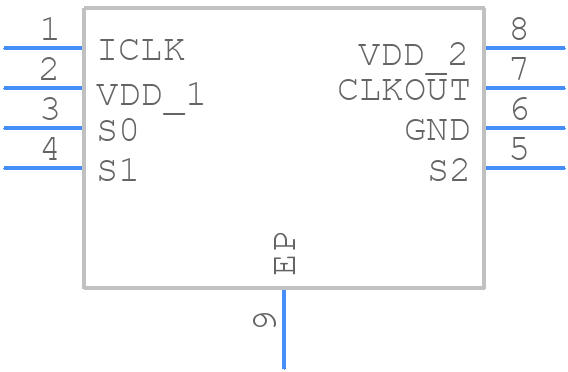

Use the download button to access the 5P50901NBGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5P509,
or try a keyword search, such as Clock Generators
