Description:The 5PB1102 is a high-performance 1:2 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50fsec RMS. The 5PB1102 also supports an Output Enable function. It is available in 8-pin DFN and TSSOP packages and can operate from a 1.8V to 3.3V supply.
IT CAN ALSO OPERATE WITH 2.5 V AND 3.3 V POWER SUPPLY
Family:
5PB11
Input Conditioning:
STANDARD
JESD-30 Code:
S-XDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Max I(ol):
0.012 A
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Number of True Outputs:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VSON
Package Equivalence Code:
SOLCC8,.08,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
13 mA
Prop. Delay@Nom-Sup:
2.5 ns
Propagation Delay (tpd):
2.9 ns
Same Edge Skew-Max (tskwd):
0.05 ns
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
3.465 V
Supply Voltage-Min (Vsup):
1.71 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
5PB1102CMGI Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the package.
Implement a robust power-on reset circuit, ensure a stable clock source, and consider using a thermistor or thermocouple to monitor temperature. Also, follow the recommended operating conditions and derating guidelines.
Use a multi-layer PCB with a solid ground plane, keep signal traces short and away from the edge, and use shielding or a metal can to enclose the device. Also, ensure proper decoupling and filtering of power supplies.
Use the device's power-down modes, disable unused peripherals, and optimize clock frequencies. Also, consider using a low-dropout regulator (LDO) and a power-gating scheme.
Use a version control system, implement a modular code structure, and utilize the device's built-in debugging features, such as the on-chip debugger. Also, consider using a real-time operating system (RTOS) and a firmware development framework.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5PB1102CMGI Overview

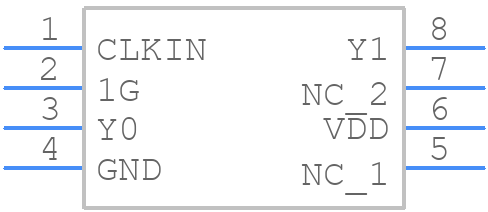

Use the download button to access the 5PB1102CMGI schematic symbol, PCB footprint, and 3D model.
