Description:The 5PB1106 is a high-performance 1:6 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS. The 5PB1106 also supports an Output Enable function. It is available in 16-pin QFN and 14-pin TSSOP packages and can operate from a 1.8 V to 3.3 V supply.
IT CAN ALSO OPERATE WITH 2.5 V AND 3.3 V POWER SUPPLY
Family:
5PB11
Input Conditioning:
STANDARD
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
2.5 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Max I(ol):
0.012 A
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Number of True Outputs:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16,.10SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Packing Method:
TAPE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
30 mA
Prop. Delay@Nom-Sup:
2.5 ns
Propagation Delay (tpd):
3.3 ns
Same Edge Skew-Max (tskwd):
0.058 ns
Seated Height-Max:
0.55 mm
Supply Voltage-Max (Vsup):
3.465 V
Supply Voltage-Min (Vsup):
1.71 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.5 mm
5PB1106CMGK Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input capacitor should be a low-ESR, high-frequency capacitor with a minimum capacitance of 10uF and a voltage rating of at least 25V. The capacitor should be placed as close to the IC as possible to minimize noise and ensure stable operation.
Renesas provides a troubleshooting guide in their application notes, which includes steps to identify and resolve common issues, such as output voltage errors, oscillations, and thermal shutdowns. Additionally, engineers can use oscilloscopes and other diagnostic tools to analyze the circuit behavior.
Using a different inductor value or type can affect the converter's performance, efficiency, and stability. Engineers should consult the datasheet and application notes to ensure the selected inductor meets the recommended specifications and follows the guidelines for inductor selection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5PB1106CMGK Overview

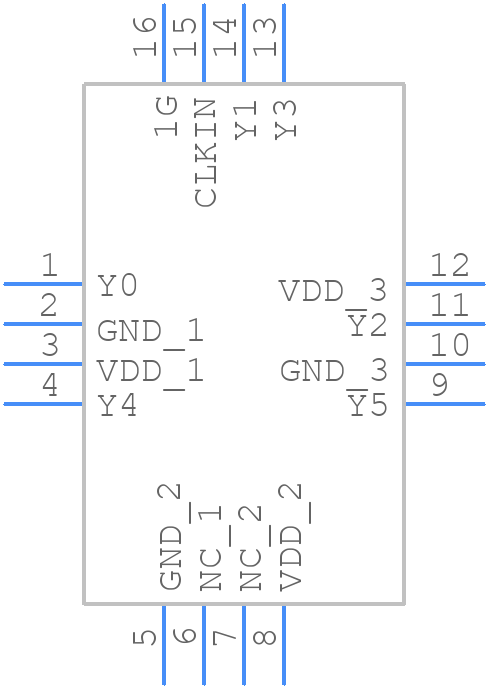

Use the download button to access the 5PB1106CMGK schematic symbol, PCB footprint, and 3D model.
