5PB1106PGGI8 - Renesas Electronics

Description: The 5PB1106 is a high-performance 1:6 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS. The 5PB1106 also supports an Output Enable function. It is available in 16-pin QFN and 14-pin TSSOP packages and can operate from a 1.8 V to 3.3 V supply.

Download 5PB1106PGGI8 Model
Schematic

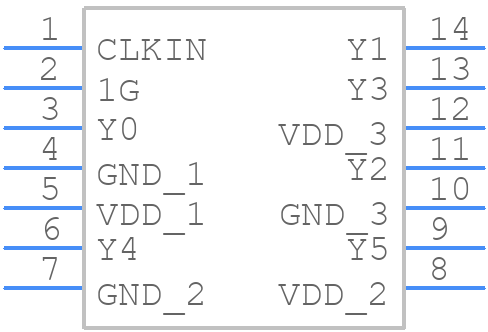

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5PB1106PGGI8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG14T1
click to zoom
3D Models
5PB1106PGGI8 - Renesas Electronics  - 3D model - Small Outline Packages - PGG14T1
click to zoom

5PB1106PGGI8 Details

  • Manufacturer Part Number:

    5PB1106PGGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PGG14T1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Family:

    5PB11

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Load Capacitance (CL):

    5 pF

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.005 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    18 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    2.5 ns

  • Same Edge Skew-Max (tskwd):

    0.058 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

5PB1106PGGI8 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to a solid ground plane to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current specifications. Implement proper thermal management, and consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The input clock signal should have a rise and fall time of less than 1 ns, and the clock frequency should be within the specified range (25-100 MHz). Ensure that the clock signal is clean and free from noise to prevent jitter and ensure reliable operation.
  • Ensure that the power supply voltage (VCC) is applied before the reset signal (RST) is released. During power-down, ensure that the reset signal is asserted before the power supply voltage is removed. Follow the recommended power sequencing and reset timing diagrams in the datasheet.
  • Implement ESD protection measures such as TVS diodes or ESD arrays on the input/output pins. Ensure that the PCB design includes a solid ground plane and that the device is handled and stored in an ESD-safe environment.
