Description:The 5PB1106 is a high-performance 1:6 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS. The 5PB1106 also supports an Output Enable function. It is available in 16-pin QFN and 14-pin TSSOP packages and can operate from a 1.8 V to 3.3 V supply.
IT CAN ALSO OPERATE WITH 2.5 V AND 3.3 V POWER SUPPLY
Family:
5PB11
Input Conditioning:
STANDARD
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Length:
5 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Max I(ol):
0.012 A
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
14
Number of True Outputs:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
30 mA
Prop. Delay@Nom-Sup:
2.5 ns
Propagation Delay (tpd):
3.3 ns
Same Edge Skew-Max (tskwd):
0.058 ns
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
3.465 V
Supply Voltage-Min (Vsup):
1.71 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
5PB1106PGGK Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note (R01AN4333EJ0100) which includes thermal design considerations, such as placing thermal vias under the package and using a solid ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a heat sink or a fan to reduce the junction temperature.
The input capacitor (CIN) should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor (COUT) should have a low ESR and be rated for the output voltage. A 10uF to 47uF ceramic capacitor is recommended. Refer to the datasheet for more detailed guidance.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and thermal design for any potential issues. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, to ensure EMI and EMC compliance, follow the recommended PCB layout and design guidelines, use a suitable EMI filter, and consider adding shielding or a metal can to the device. Additionally, ensure that the device is operated within the specified frequency range and that the output voltage is properly filtered.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5PB1106PGGK Overview

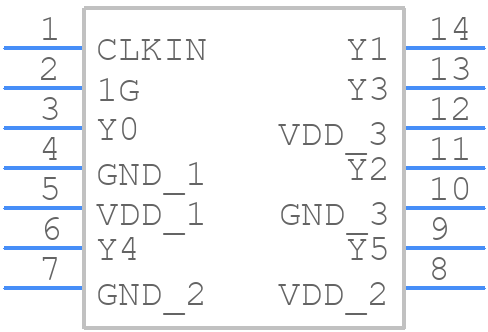

Use the download button to access the 5PB1106PGGK schematic symbol, PCB footprint, and 3D model.
