5PB1110NDG2 - Renesas Electronics

Description: Clock Fanout Buffer (Distribution) IC 1:10 200 MHz 20-VFQFN Exposed Pad, -40°C ~ 105°C

Download 5PB1110NDG2 Model

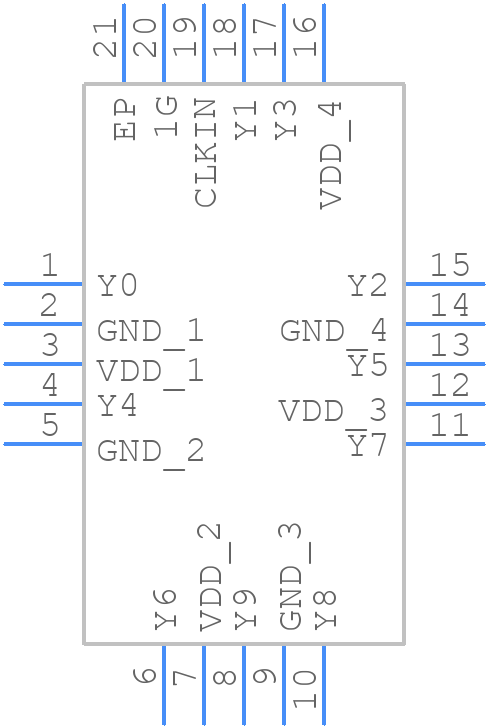

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5PB1110NDG2 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG20P2_2025
click to zoom
3D Models
5PB1110NDG2 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG20P2_2025
click to zoom

5PB1110NDG2 Details

  • Manufacturer Part Number:

    5PB1110NDG2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    20

  • Manufacturer Package Code:

    NDG20S2

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.5 V AND 3.3 V POWER SUPPLY

  • Family:

    5PB11

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    256 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4.75 ns

  • Same Edge Skew-Max (tskwd):

    0.087 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

5PB1110NDG2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 5PB1110NDG2 is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, including providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
  • The maximum allowable voltage for the 5PB1110NDG2 is 3.6V. Exceeding this voltage may cause damage to the device.
  • To handle ESD protection for the 5PB1110NDG2, it is recommended to follow proper ESD handling procedures, including using ESD-protective packaging, wrist straps, and mats, and ensuring that the device is handled in a static-free environment.
  • The recommended storage temperature range for the 5PB1110NDG2 is -40°C to 125°C.
