5PB1110PGGI - Renesas Electronics

Description: The 5PB1110 is a high-performance 1:10 LVCMOS clock buffer. It has best-in-class Additive Phase Jitter of 50 fsec RMS. The 5PB1110 also supports an Output Enable function. It is available in 20-pin QFN and TSSOP packages and can operate from a 1.8 V to 3.3 V supply.

Download 5PB1110PGGI Model

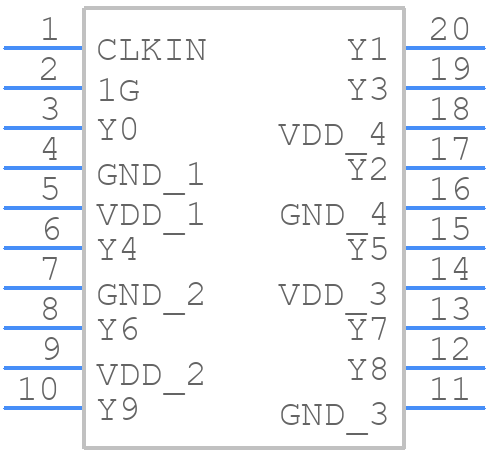

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5PB1110PGGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - pgg20-
click to zoom
3D Models
5PB1110PGGI - Renesas Electronics  - 3D model - Small Outline Packages - pgg20-
click to zoom

5PB1110PGGI Details

  • Manufacturer Part Number:

    5PB1110PGGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.5 V AND 3.3 V POWER SUPPLY

  • Family:

    5PB11

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    45 mA

  • Prop. Delay@Nom-Sup:

    2.5 ns

  • Propagation Delay (tpd):

    3 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

5PB1110PGGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 5PB1110PGGI is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, reducing the power consumption and using a thermal interface material can help to reduce the junction temperature.
  • The maximum allowable power dissipation for the 5PB1110PGGI is 1.5W. Exceeding this limit can cause the device to overheat and potentially fail.
  • The 5PB1110PGGI's POR circuitry is designed to reset the device during power-up. To handle this, ensure that the power supply is stable and within the recommended operating range before applying power to the device. Additionally, use a capacitor to filter out any noise on the power supply lines.
  • To minimize noise and ensure reliable operation, it is recommended to use a solid ground plane and to route the power and ground pins as close together as possible. Additionally, use a decoupling capacitor to filter out any noise on the power supply lines.
