5SGSMD6K2F40C3N - Intel

5SGSMD6K2F40C3N Details

• Manufacturer Part Number:

  5SGSMD6K2F40C3N

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

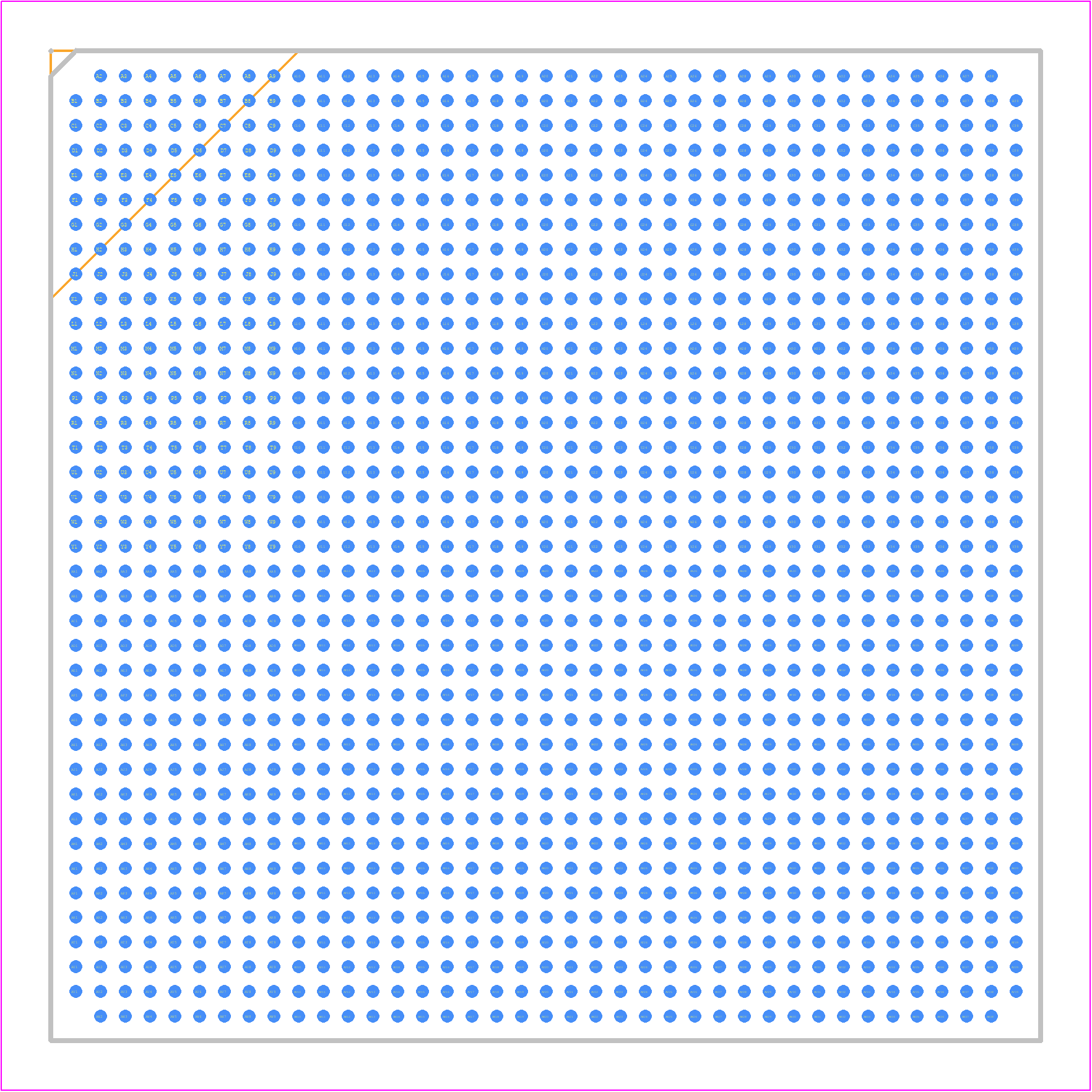

• Package Description:

  FBGA-1517

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• JESD-30 Code:

  S-PBGA-B1517

• Length:

  40 mm

• Number of CLBs:

  22000

• Number of Inputs:

  696

• Number of Logic Cells:

  583000

• Number of Outputs:

  696

• Number of Terminals:

  1517

• Operating Temperature-Max:

  85 °C

• Organization:

  22000 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1517,39X39,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.5 mm

• Supply Voltage-Max:

  0.88 V

• Supply Voltage-Min:

  0.82 V

• Supply Voltage-Nom:

  0.85 V

• Surface Mount:

  YES

• Technology:

  CMOS, 28 nm

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  40 mm
