Description:The 5V19EE403 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. Automatic or manual switchover function allows any one of the redundant clocks to be selected during
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal management guidelines. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The 5V19EE403NLGI has a specific power-up sequence requirement. Renesas recommends using an external power sequencer or a dedicated power management IC to ensure proper power-up and power-down sequencing. Consult the datasheet and application notes for more information.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the power pins. The exact capacitor value and type may vary depending on the specific application and PCB layout.
To ensure clock signal integrity and minimize jitter, Renesas recommends using a high-quality clock source, such as a crystal oscillator, and following proper PCB layout and routing guidelines for clock signals. Additionally, consider using clock conditioning circuits or clock buffers to improve signal quality.
The 5V19EE403NLGI has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to design a thermal management system that keeps the device temperature below this limit. This may involve using heat sinks, thermal interfaces, and airflow management techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5V19EE403NLGI Overview

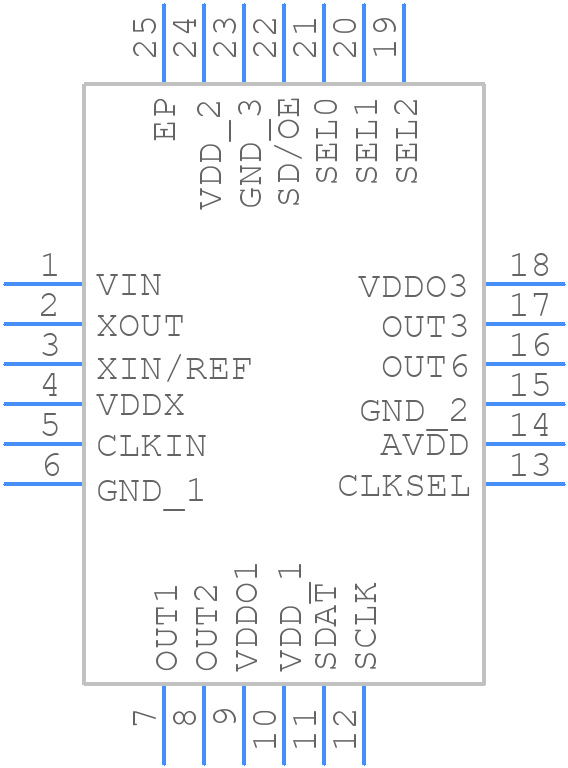

Use the download button to access the 5V19EE403NLGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5V19E,
or try a keyword search, such as Clock Drivers
