5V41064NLG - Renesas Electronics

Description: The 5V41064 is a PCIe Gen2 compliant spread spectrum capable clock generator. The device has 1 differential HCSL output and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). Spread spectrum can be enabled via a select pin.

Download 5V41064NLG Model

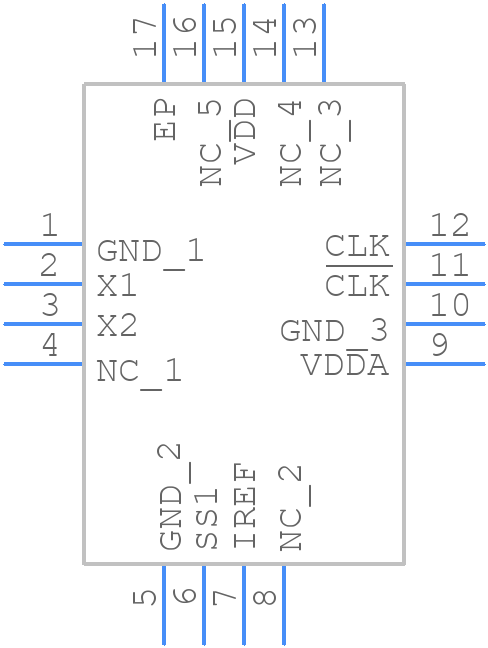

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V41064NLG - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG 16 P2
click to zoom
3D Models
5V41064NLG - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG 16 P2
click to zoom

5V41064NLG Details

  • Manufacturer Part Number:

    5V41064NLG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    16

  • Manufacturer Package Code:

    NLG16P2

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41064NLG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN983) and design guides (e.g., DG003). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and minimize EMI.
  • The 5V41064NLG has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink. Follow Renesas' thermal design guidelines (e.g., AN985) and consider using a thermal simulation tool to optimize your design.
  • The input clock signal should be a stable, low-jitter clock source with a frequency range of 10 MHz to 40 MHz. The clock signal should also meet the specified amplitude and rise/fall time requirements (see datasheet section 6.3).
  • To minimize power consumption, use the device's power-down modes (e.g., PD0, PD1, and PD2). These modes can be controlled through the device's registers. Additionally, consider using a low-power oscillator and optimizing your system's clock frequency and voltage supply.
  • The internal PLL settings depend on the specific application and clock frequency requirements. Renesas provides guidelines for PLL configuration in their application notes (e.g., AN982) and design guides (e.g., DG002). It's essential to follow these guidelines to ensure stable and accurate clock generation.
