5V41064NLGI - Renesas Electronics

Description: The 5V41064 is a PCIe Gen2 compliant spread spectrum capable clock generator. The device has 1 differential HCSL output and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). Spread spectrum can be enabled via a select pin.

Download 5V41064NLGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

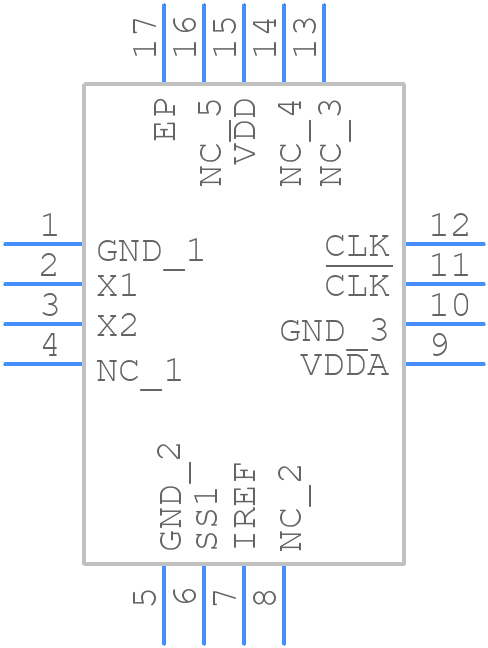

5V41064NLGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
5V41064NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG 16 P2
click to zoom
3D Models
5V41064NLGI - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG 16 P2
click to zoom

5V41064NLGI Details

  • Manufacturer Part Number:

    5V41064NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    16

  • Manufacturer Package Code:

    NLG16P2

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41064NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 5V41064NLGI, which includes guidelines for power supply decoupling, signal routing, and thermal management. It's essential to follow this guide to ensure optimal performance, low noise, and high reliability.
  • The 5V41064NLGI has a thermal pad on the bottom of the package, which requires a thermal interface material (TIM) to dissipate heat efficiently. A heat sink or a thermal pad with a thermal conductivity of at least 1 W/m-K is recommended. Additionally, ensure good airflow around the device and avoid blocking the thermal pad.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device can operate up to 105°C with reduced performance and reliability. However, it's recommended to operate within the specified range for optimal performance and longevity.
  • The 5V41064NLGI has internal registers that can be programmed using the I2C or SPI interface. Renesas provides a programming guide and software development kits (SDKs) for various programming languages, including C, Python, and MATLAB. It's essential to follow the programming guide and SDK documentation to ensure correct register configuration.
  • The 5V41064NLGI requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is VCC, then VDD, and finally the clock signal. The power-down sequence should be reversed. Failure to follow the recommended power sequencing may result in device damage or malfunction.
