5V41064NLGI8 - Renesas Electronics

Description: The 5V41064 is a PCIe Gen2 compliant spread spectrum capable clock generator. The device has 1 differential HCSL output and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). Spread spectrum can be enabled via a select pin.

Download 5V41064NLGI8 Model

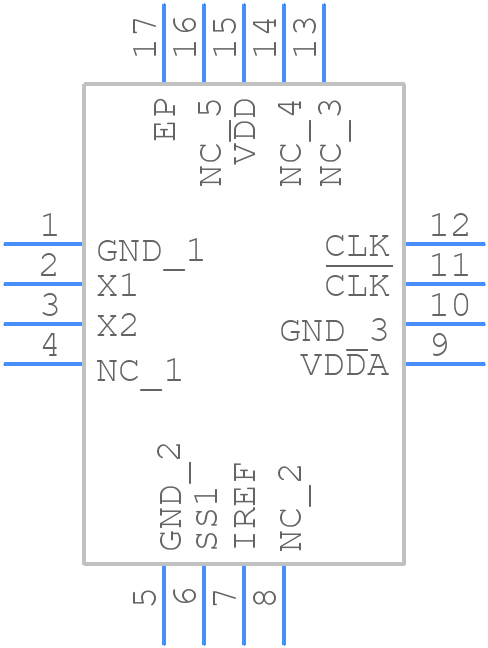

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V41064NLGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG16P2_a
click to zoom
3D Models
5V41064NLGI8 - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG16P2_a
click to zoom

5V41064NLGI8 Details

  • Manufacturer Part Number:

    5V41064NLGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Pin Count:

    16

  • Manufacturer Package Code:

    NLG16P2

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41064NLGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-6101) for the 5V41064NLGI8, which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external power sequencer, such as the ISL54220, to control the power-up and power-down sequencing of multiple voltage rails. The 5V41064NLGI8 can be configured to work with the power sequencer using the Power Good (PG) signal.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at higher temperatures. For extended temperature range applications, consult Renesas' application notes and thermal design guidelines.
  • The 5V41064NLGI8 is not specifically designed for radiation-hardened or high-reliability applications. For such applications, Renesas offers separate product lines, such as the RH850 and RL78, which are designed to meet specific radiation and reliability requirements.
  • Renesas recommends using decoupling capacitors with values between 0.1 μF to 10 μF, placed as close as possible to the power pins of the 5V41064NLGI8. The exact values and placement depend on the specific application and PCB layout.
