5V41065PGG - Renesas Electronics

Description: The 5V41065 is a PCIe Gen2 compliant spread spectrum capable clock generator. The device has 2 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins. The 5V41065 can also supply 25 MHz, 125 MHz and 200 MHz outputs for applications such as Ethernet.

Download 5V41065PGG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

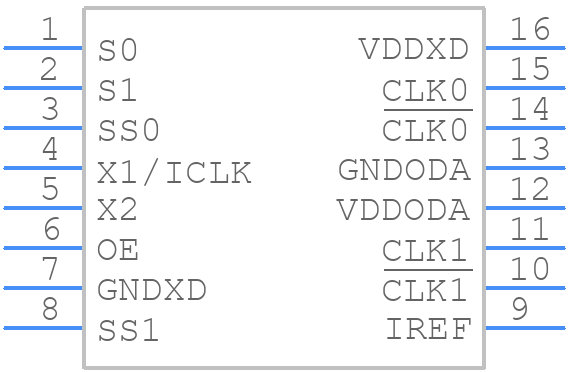

5V41065PGG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
5V41065PGG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG16 (TSSOP16)
click to zoom
3D Models
5V41065PGG - Renesas Electronics - 3D model - Small Outline Packages - PGG16 (TSSOP16)
click to zoom

5V41065PGG Details

  • Manufacturer Part Number:

    5V41065PGG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41065PGG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN983) and design guides (e.g., DG003). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent signal integrity issues.
  • The 5V41065PGG has a flexible clock input configuration. You can use an external clock source, or configure the internal PLL to generate the clock signal. Refer to the datasheet section 5.3 'Clock Input' and application notes (e.g., AN983) for detailed configuration guidelines.
  • The 5V41065PGG has an industrial temperature range of -40°C to +85°C. However, it's essential to consider the specific application's requirements and ensure the device operates within the recommended temperature range to maintain reliability and performance.
  • The 5V41065PGG has built-in POR and BOD circuits. You can configure these features using the device's configuration registers. Refer to the datasheet section 5.5 'Power-On Reset (POR) and Brown-Out Detection (BOD)' for detailed information and configuration guidelines.
  • Renesas recommends using decoupling capacitors with a value of 0.1 μF to 1 μF, depending on the specific application's requirements. It's essential to place these capacitors close to the device's power pins to ensure optimal performance and reduce noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5V41065PGG Overview

Use the download button to access the 5V41065PGG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5V410, or try a keyword search, such as Clock Generators
