5V41068APGGI - Renesas Electronics

Description: The 5V41068A is a 2:1 differential clock mux for PCI Express applications. It has very low additive jitter making it suitable for use in PCIe Gen2 and Gen3 systems. The 5V41068A selects between 1 of 2 differential HCSL inputs to drive a single differential HCSL output pair. The output can also be terminated to LVDS.

Download 5V41068APGGI Model

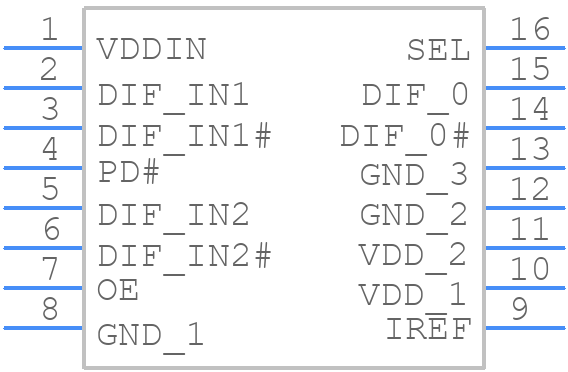

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V41068APGGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom
3D Models
5V41068APGGI - Renesas Electronics  - 3D model - Small Outline Packages - PGG16 (TSSOP16)-
click to zoom

5V41068APGGI Details

  • Manufacturer Part Number:

    5V41068APGGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    5V

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

5V41068APGGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP-6101) for the 5V41068APGGI, which includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to minimize thermal resistance and ensure reliable operation.
  • Renesas recommends using an external power sequencer, such as the ISL6123, to control the power-up and power-down sequencing of multiple voltage rails. This ensures that the voltage rails are powered up and down in the correct order to prevent damage to the device.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at higher temperatures. For extended temperature range operation, consult Renesas' application notes and thermal design guidelines.
  • The 5V41068APGGI is not specifically designed or tested for radiation-hardened applications. For such applications, Renesas offers separate product lines, such as the RH850/C1x series, which are designed to meet radiation-hardened requirements.
  • Renesas recommends following the clock signal integrity guidelines outlined in their application note (AP-6102) for the 5V41068APGGI, which includes clock signal routing, termination, and jitter tolerance recommendations to ensure reliable operation.
