5V49EE501NLGI - Renesas Electronics

Description: The 5V49EE501 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. Automatic or manual switchover function allows any one of the redundant clocks to be selected during

Download 5V49EE501NLGI Model

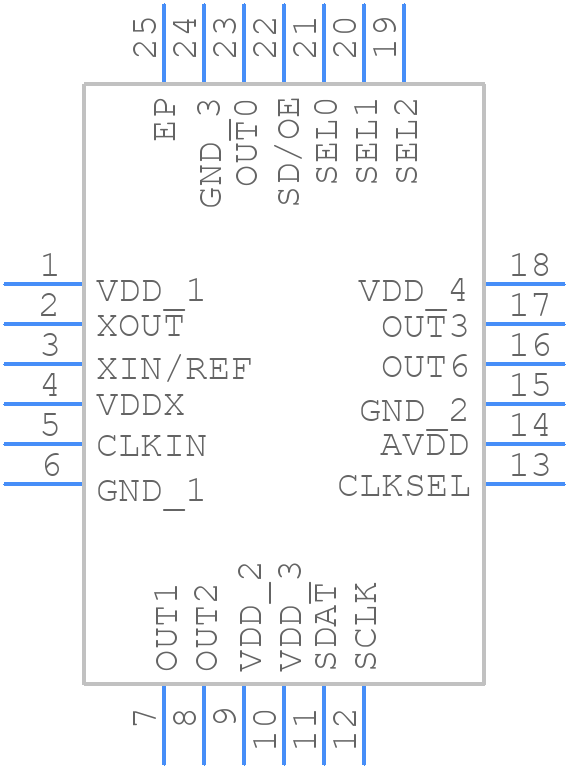

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V49EE501NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1*
click to zoom
3D Models
5V49EE501NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24P1*
click to zoom

5V49EE501NLGI Details

  • Manufacturer Part Number:

    5V49EE501NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    500 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    200 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V49EE501NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN2023) and design guides (e.g., DG2023). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and minimize signal integrity issues.
  • The 5V49EE501NLGI has a complex clock tree architecture. Renesas provides a clock tree configuration tool (e.g., Clock Tree Configuration Tool for Intel FPGAs) and guidelines in their user manuals (e.g., UG2023) to help configure the clock tree correctly.
  • The 5V49EE501NLGI has a high thermal design power (TDP). Renesas recommends using thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device within its recommended operating temperature range.
  • Renesas provides power sequencing guidelines in their user manuals (e.g., UG2023) and power management guides (e.g., PG2023). It's essential to follow these guidelines to ensure proper power-up and power-down sequencing to prevent damage to the device.
  • Renesas provides decoupling capacitor guidelines in their user manuals (e.g., UG2023) and PCB design guides (e.g., DG2023). The recommended values and placement depend on the specific application and operating conditions.
